JW-UV5
JW

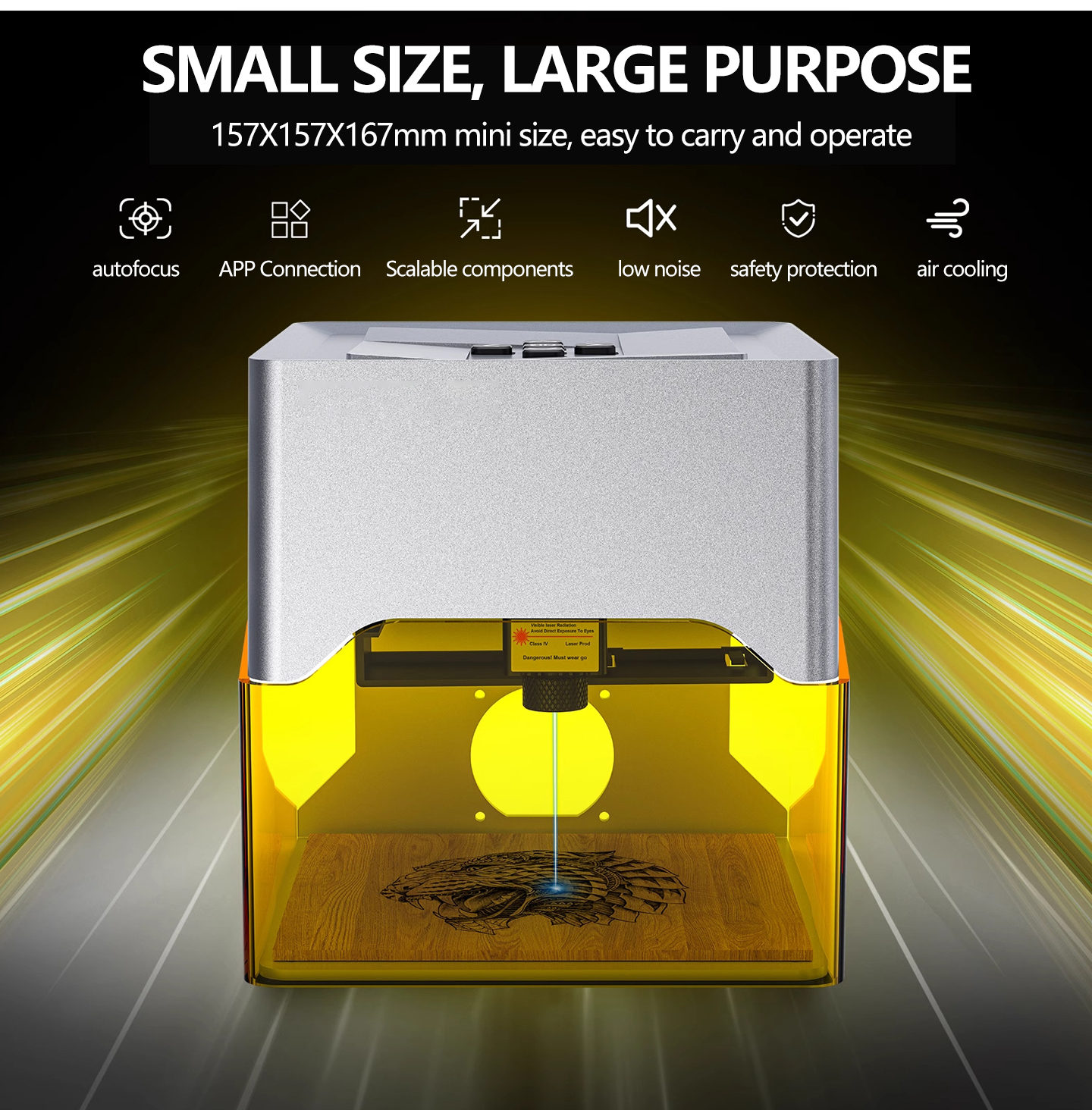

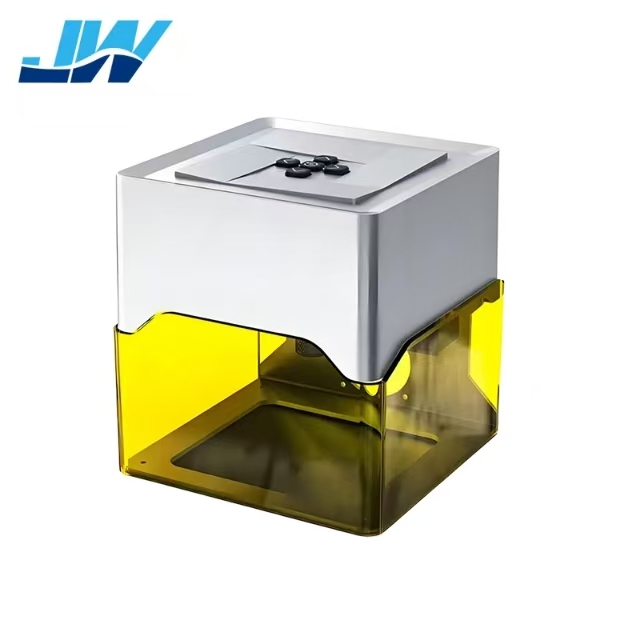

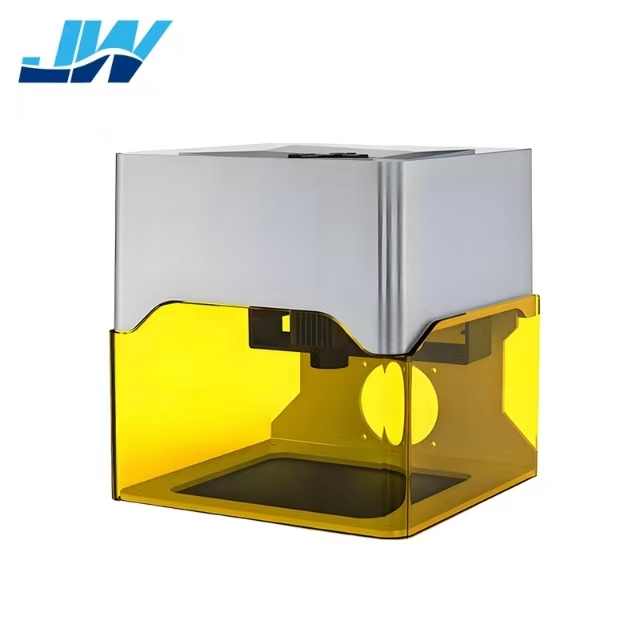

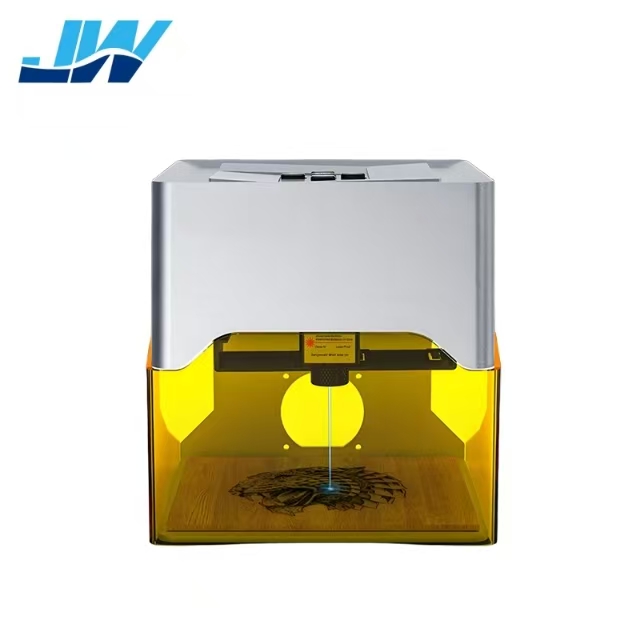

Compact yet powerful laser engraver: The mini laser engraver combines a sleek silver-gray design (157 × 157 × 167 mm) with a 1600 mW adjustable laser, Class 4, enabling precise engraving on materials such as wood, leather, paper, plastic, and metal. Its compact size fits any workspace, while offering an 80 × 80 mm engraving area with 0-30 mm height support.
High precision and speed: Equipped with XY-axis motors (0.1 mm positioning accuracy) and GRBL open-source firmware, this engraver achieves an engraving precision of 0.1 mm at speeds up to 3000 mm/min. The auto-focus laser head optimizes performance at distances of 2.5-6.5 cm.
Wide material compatibility: Easily engrave or mark various materials: plywood, MDF, bamboo, paper, painted metal, leather, etc. Ideal for DIY crafts, gifts, and small-scale industrial applications.
User-friendly operation: No screen required - controlled via Bluetooth, USB, or TF card. Compatible with Lightburn, Laser GRBL, MKS Laser applications (Windows/iOS). Supports 9 languages and .NC/.Gcode files for a seamless workflow.
Product Parameters | |

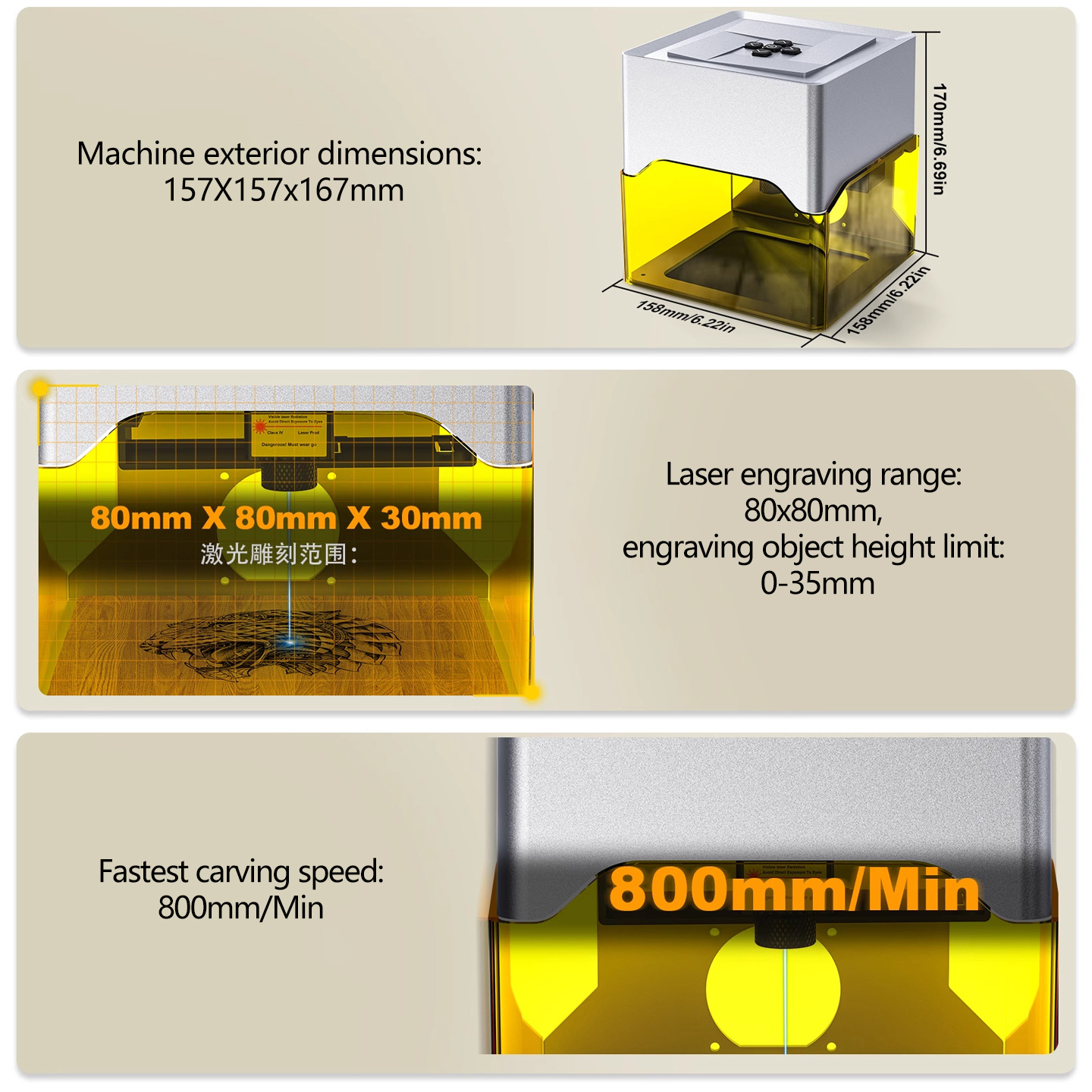

Machine dimensions | 157 x 157 x 167mm |
Overall power | 17.5W |
Net weight | 1026g |
Support engraving diameter | 80x80mm (the machine cavity can support objects with a height of 0-30mm) |
Laser power | 1.6W(Adjustable focus laser head Optimal focus distance 2.5-6.5cm) |
Compatible engraving materials | Wood,Plastic,Paper,Leather,Stainless Steel |
Engraving accuracy | 100±0.05mm |
Input voltage | 100-240V-50-60Hz |
Maximum engraving speed | 3000 mm/min |
Maximum acceleration | 320 mm/min |
Software | Lightburn/lasergrbl/MKSLaser (Mobile App) |
Supported operating systems | Windows/iOS |
Software languages | Chinese, English, Spanish, German, French, Russian, Italian, Japanese, Korean |
Compact yet powerful laser engraver: The mini laser engraver combines a sleek silver-gray design (157 × 157 × 167 mm) with a 1600 mW adjustable laser, Class 4, enabling precise engraving on materials such as wood, leather, paper, plastic, and metal. Its compact size fits any workspace, while offering an 80 × 80 mm engraving area with 0-30 mm height support.
High precision and speed: Equipped with XY-axis motors (0.1 mm positioning accuracy) and GRBL open-source firmware, this engraver achieves an engraving precision of 0.1 mm at speeds up to 3000 mm/min. The auto-focus laser head optimizes performance at distances of 2.5-6.5 cm.
Wide material compatibility: Easily engrave or mark various materials: plywood, MDF, bamboo, paper, painted metal, leather, etc. Ideal for DIY crafts, gifts, and small-scale industrial applications.
User-friendly operation: No screen required - controlled via Bluetooth, USB, or TF card. Compatible with Lightburn, Laser GRBL, MKS Laser applications (Windows/iOS). Supports 9 languages and .NC/.Gcode files for a seamless workflow.
Product Parameters | |
Machine dimensions | 157 x 157 x 167mm |
Overall power | 17.5W |
Net weight | 1026g |
Support engraving diameter | 80x80mm (the machine cavity can support objects with a height of 0-30mm) |
Laser power | 1.6W(Adjustable focus laser head Optimal focus distance 2.5-6.5cm) |
Compatible engraving materials | Wood,Plastic,Paper,Leather,Stainless Steel |
Engraving accuracy | 100±0.05mm |
Input voltage | 100-240V-50-60Hz |
Maximum engraving speed | 3000 mm/min |
Maximum acceleration | 320 mm/min |
Software | Lightburn/lasergrbl/MKSLaser (Mobile App) |
Supported operating systems | Windows/iOS |
Software languages | Chinese, English, Spanish, German, French, Russian, Italian, Japanese, Korean |
