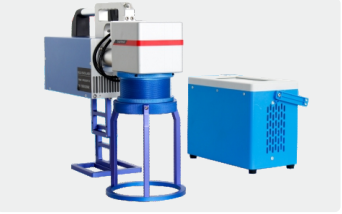

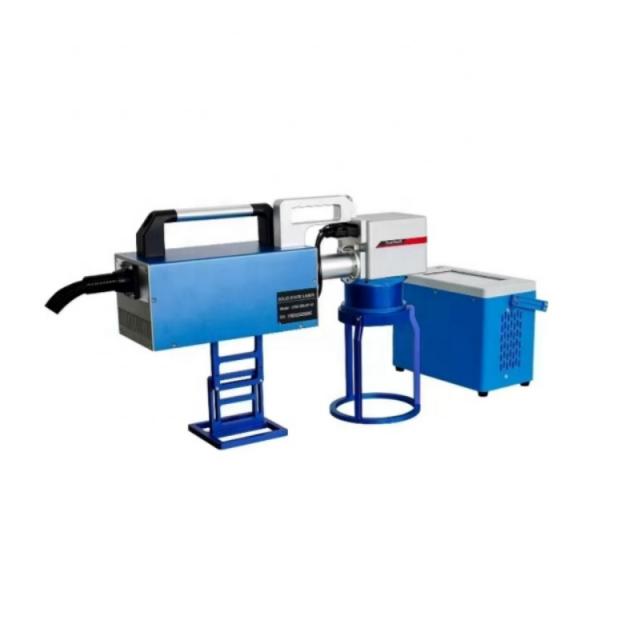

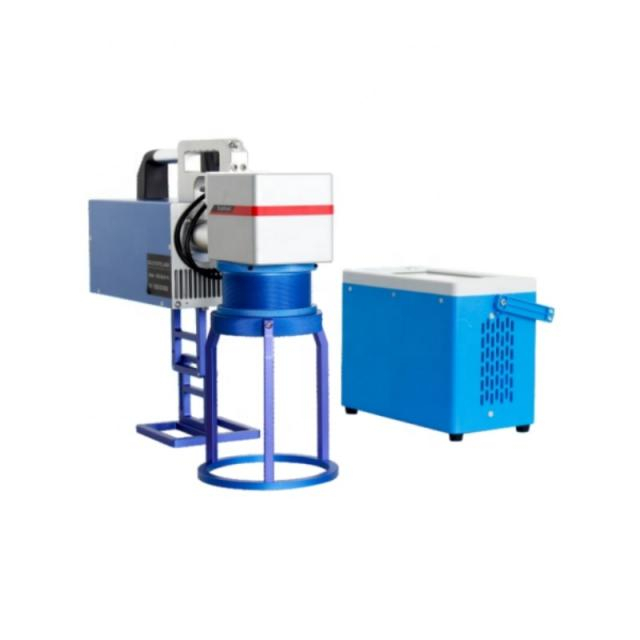

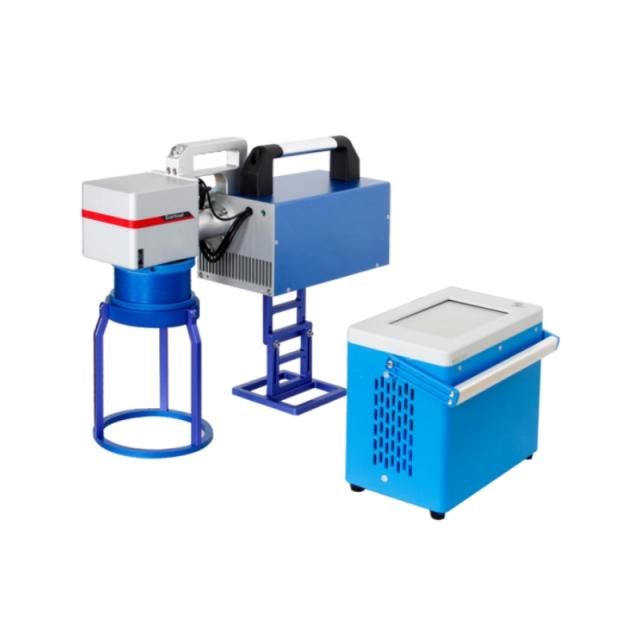

JW-UV5
JW
The output laser spot is small, the beam quality is high, the focused spot is small, the clarity is high, and it is suitable for fine marking, which can bring users exquisite and beautiful marking effects.

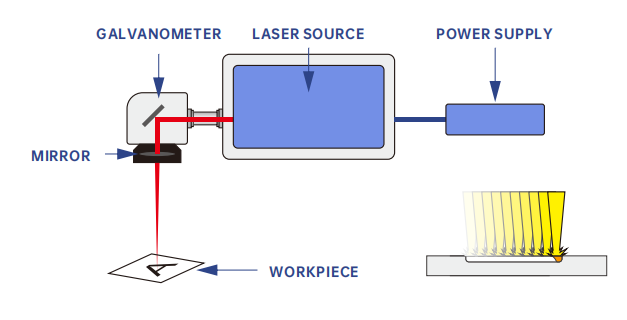

The laser generates a high-energy laser beam. After being focused by the scene, the extremely small focused spot acts on the surface of the material to be processed, causing oxidation, melting, and even gasification of the material surface, thereby causing changes in color or depth to achieve the purpose of laser marking.
The total machine weighs 11.85kg

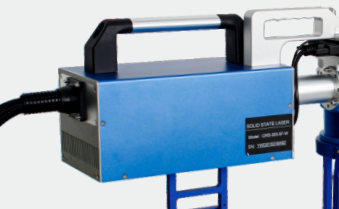

Advanced ultraviolet laser
Long battery life, 2-3 hours working time

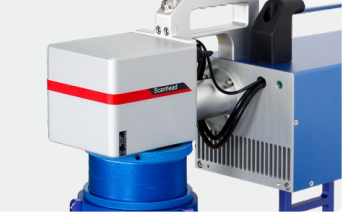

High stability galvanometer

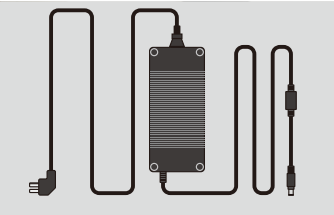

Marking While Charging: The device can be charged and used at work.
Automatic start and stop design , saving electricity and reducing consumption.
Diversified marking content, supporting language customization

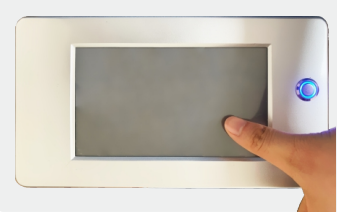

Eight-core CPU, configure Linux system
| Product Parameters | |
|---|---|
| Laser power | 3W/5W |
| Laser wavelength | 355nm |
| Beam quality M² | ≤1.4 |
| Pulse repetition rate | 10kHz-150kHz |
| Output power stability | <+3%（Within 24 hours） |
| Design life | Approximately 20,000 working hours (not service life) |
| Marking range | 100*100mm |
| Engraving depth | ≤1mm(depending on power and time) |
| Engraving speed | ≤10000mm/s |
| Repeatability | ±0.002mm |
| Minimum marker line width | 0.1mm |
| Minimum character height | 0.15mm |
| Cooling way | Built-in air cooling |
| Power supply to the system | 220V / 50Hz（Can be connected to 110v） |
| Temperature, humidity | 0~40°，30%≤RH≤85%，When used beyond the range, an air conditioner needs to be installed. |
| Oil mist, condensation | Prohibited |
| operating system | Linux |

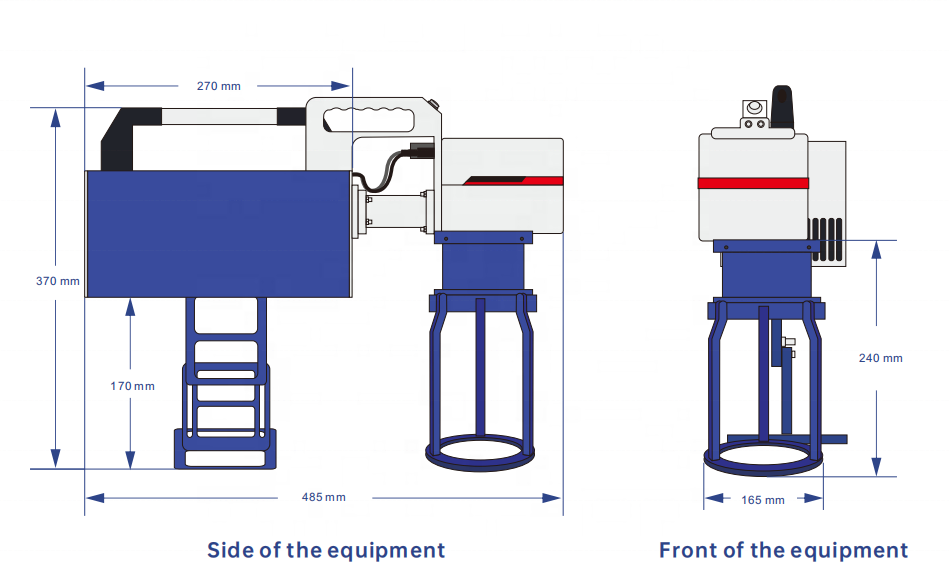

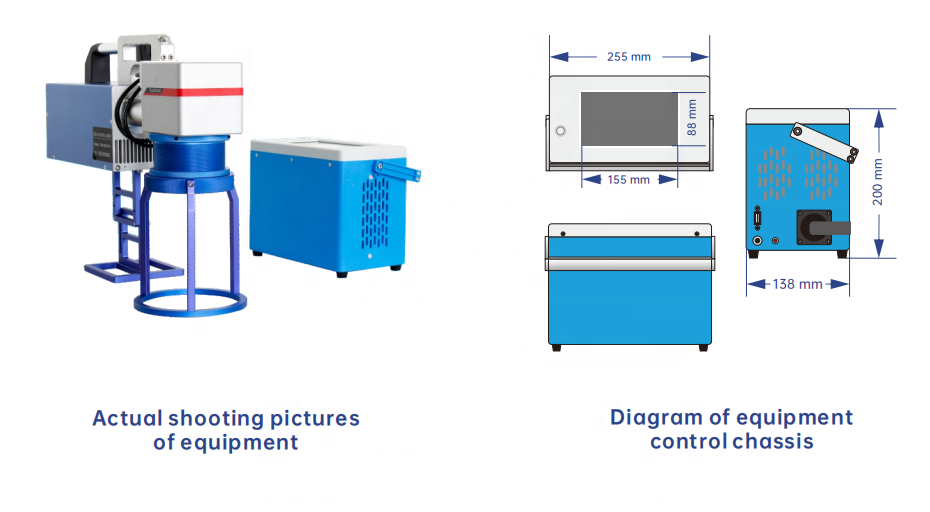

| Dimensions | Marking head:165*485*370mm Machine control chassis:138*255*200mm |
| Total weight | 11.85kg （Marking head: 8kg） |
UV marking machines are widely used in industries such as electronics, automotive, food and pharmaceuticals.
UV laser marking machines are suitable for high-end markets requiring ultra-fine processing and are widely used in:

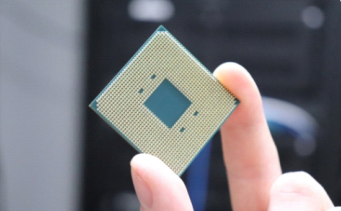

1. Electronic components and integrated circuits
2. Glass and crystal products
3. Plastics and polymer materials
4. Fine marking of metal materials
1. Payment: T/T, Paypal,Credit/Debit Card
2. Packaging details: Standard export packing, major products using export plywood case packing
3. The delivery lead time would be 2-7 working days after receiving the payment.
4. As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forward.
Liaocheng Jingwei Laser Equipment Co., Ltd., based in Liaocheng, Shandong, China, was founded in 2008. Over the years, it has evolved into a professional factory integrating R&D, manufacturing, sales, and service.
The company specializes in laser engraving & cutting machines, desktop laser stamp engraving machines, fiber laser marking machines, related parts, and WD series machines. Jingwei Laser provides high-quality OEM services to overseas distributors and agents. Contact us to discuss business opportunities.
