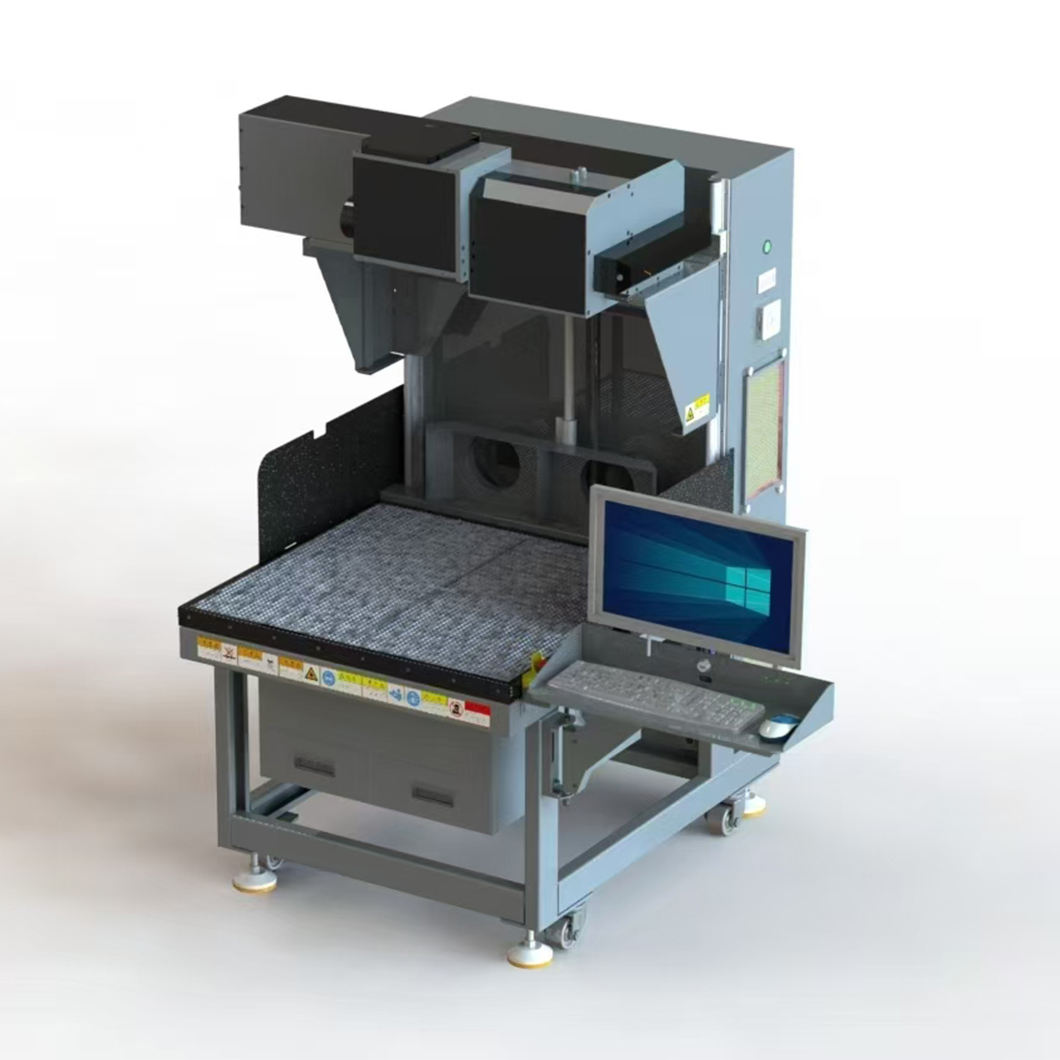

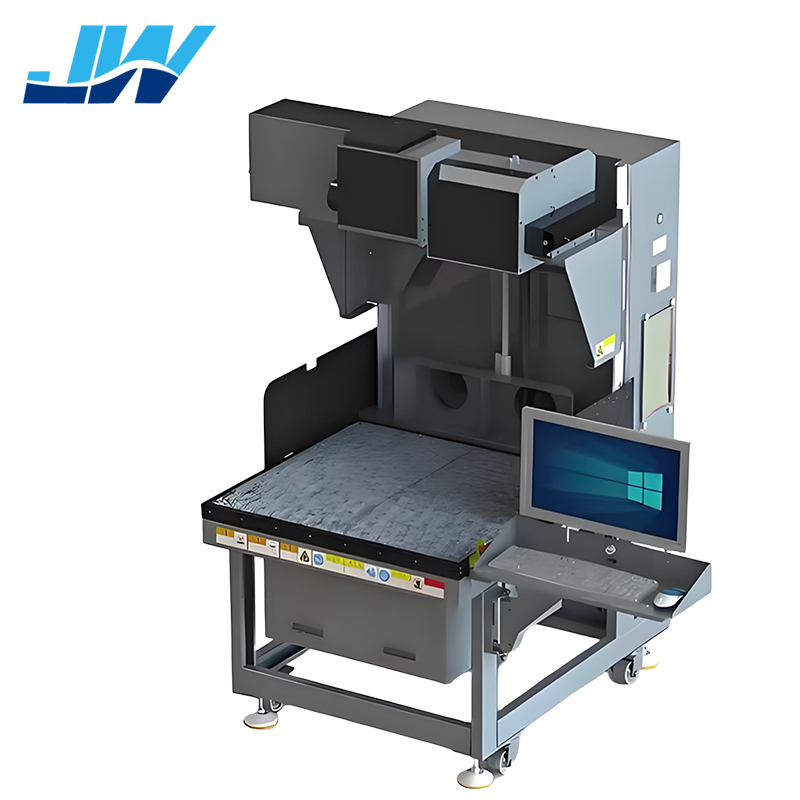

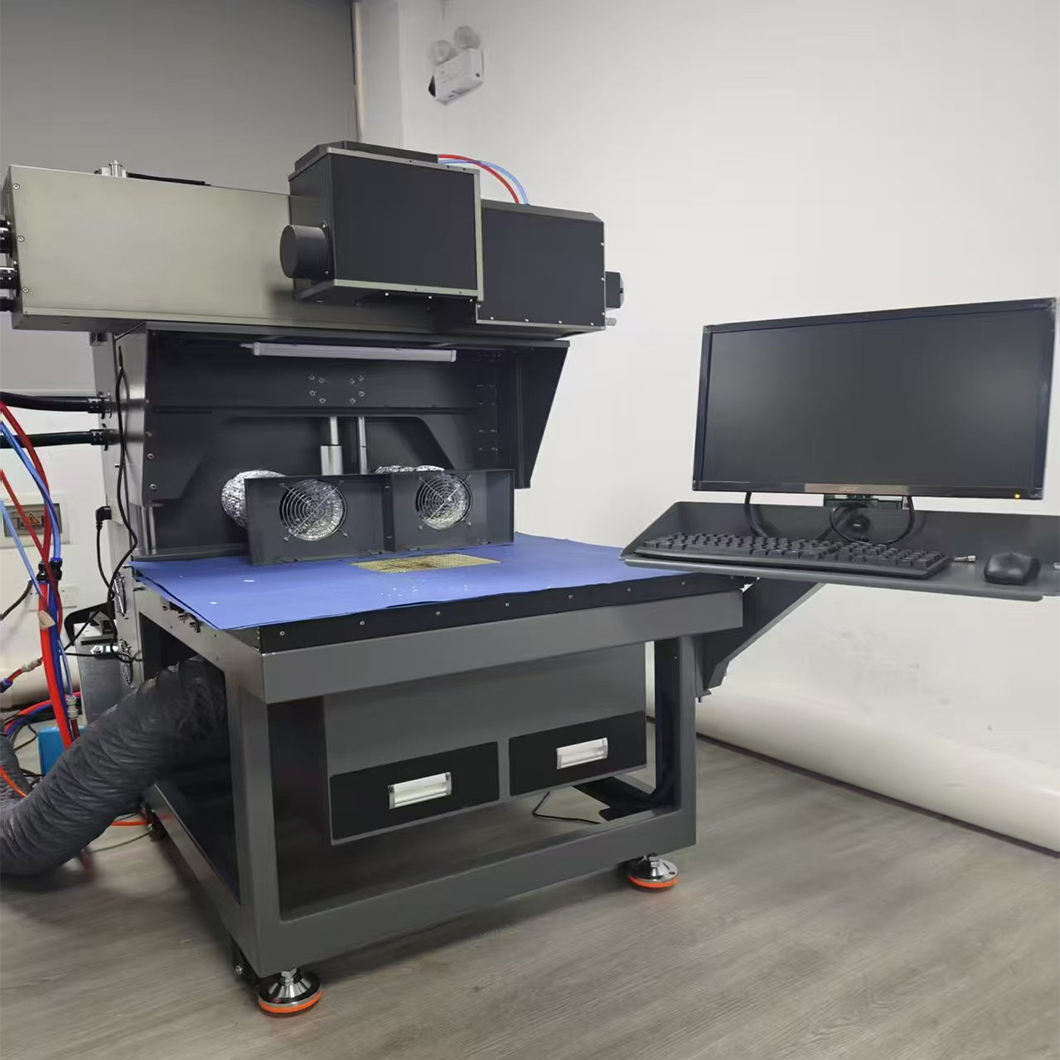

Product Description
![ultra-speed co2 laser marking machine]( "ultra-speed co2 laser marking machine")
This large-format co2 laser marking machine is suitable for high-end customers, large quantities, multiple batches,highly consistent processing effects, extremely high uniformityrequirements, and highly intelligent manufacturing processing sites. This device can performcustomized processing such as laser engraving, hollowing out, washing, cutting, etc. on various flexible materials. For example, industries such as clothing textile film, denim clothing, leather shoe materials, cultural and creativepaper products, bamboo and wood products, acrylic products, ceramic products, etc.
|
Product Features
1. INTEGRATED CAST ALUMINUM BODY
More stable structure and consistent overallprocessing effect
2. ELECTRIC SCREW LIFTING STRUCTURE
Accurately identify the required height, ensuring consistent processing resultsacross different batches
3. R50/R70 OPTICAL SYSTEM
Cutting focus is more focused, increasing ability by four times
4. INTEGRATED CASTING GRID MESH
Not affected by external wind, consistent overall processing effect
5. SOFTWARE SETTING AUTOMATICSWITCHING RANGE
The processing effect of differentbatches is highly consistent
6. INTELLIGENT CONTROL HEAD (0 DELAY)
Support smaller characters, thinner lines, and faster speed
7. INTELLIGENT FOCUSING SYSTEM
Highly intelligent, with consistent processing effects across different batches
|
Product Parameters
| Laser type | CO2 laser |
| Laser wavelength | 10.6um |
| Laser power(optional) | 300W/350W |
| Marking range(optional) | 400*400mm-800*800mm |
| Marking method | XYZ three-axis dynamic focusing |
| Scanning speed | Maximum 11000mm/s |
| Control Software | 3DLaser Marking Software |
| Platform lifting stroke | Maximum 35cm |
| Minimum line width | ±0.2mm |
| Working Voltage | AC220V±2%, 50/60Hz single phase |
| Working Environment | Temperature: 15℃－30℃; Humidity: 30－80％ |
| Equipment dimensions | 1825*1687*1278mm |
| Application Feild
![ultra-speed co2 laser marking machine2]( "ultra-speed co2 laser marking machine2")
