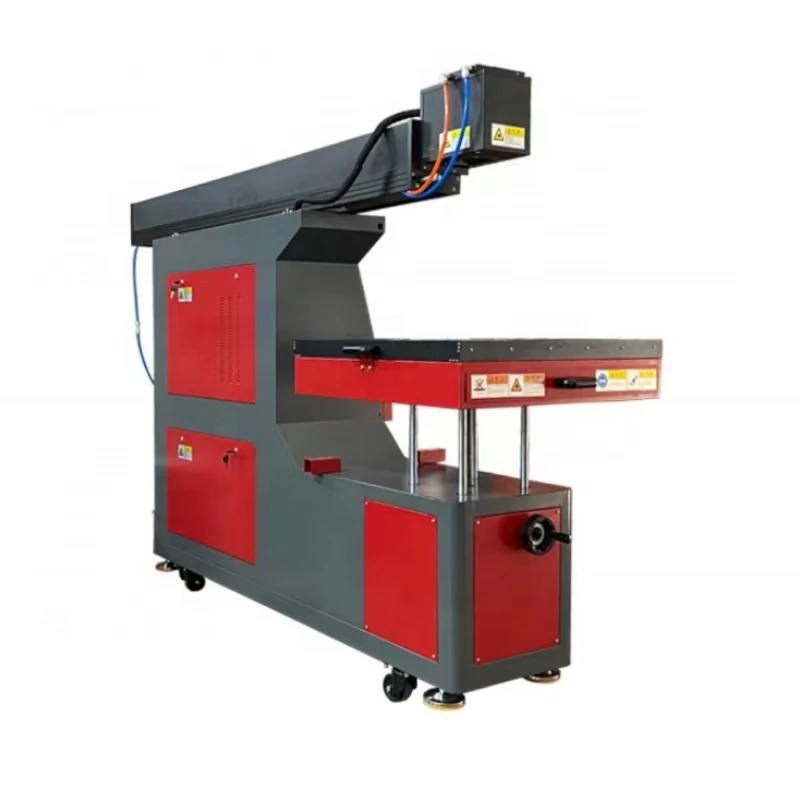

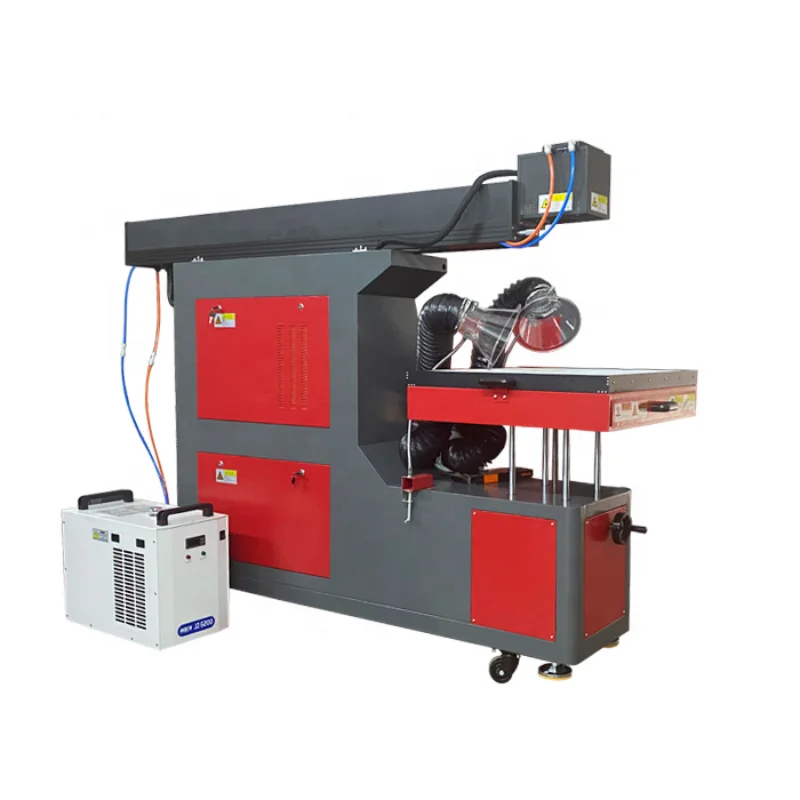

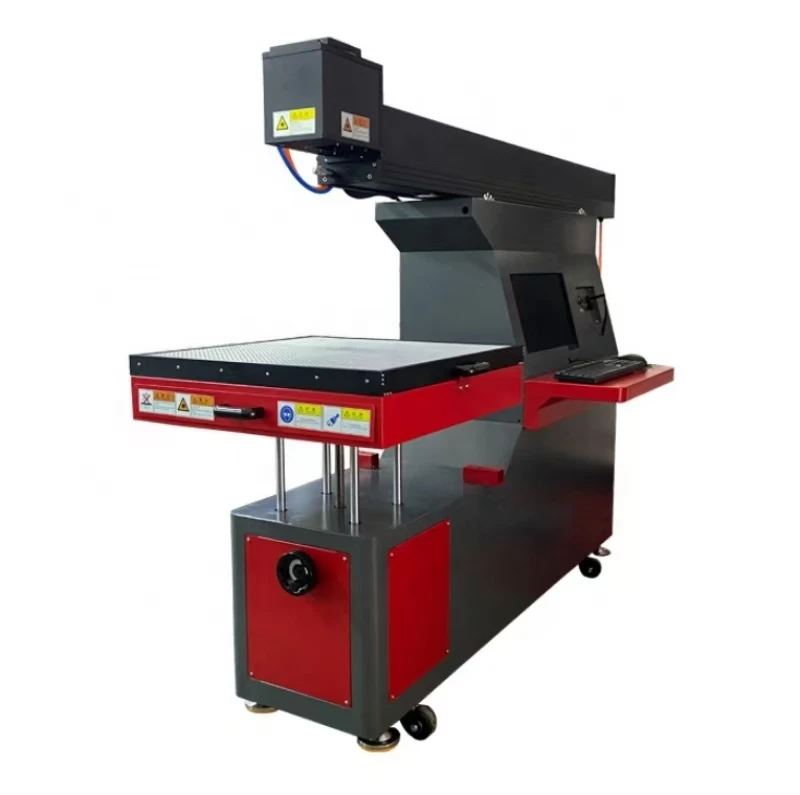

CO2 Laser Engraver Marker With Galvo Scan Head 600X600mm Marking Area 3D Dynamic Focusing Laser Marking

The 3D large-format Co2 Laser Marking Cutting Machine adopts the pre-focusing system, equipped with a high-speed and high-precision galvanometer, combined with the 3D special software and control system, to perfectly realise the fine processing of any curved workpiece without defocusing;

Availability:

Quantity:



Inquire Add to Basket

Model:
JW-3D CO2
Brand:
JW
Code:
JW-3D CO2

Product Description

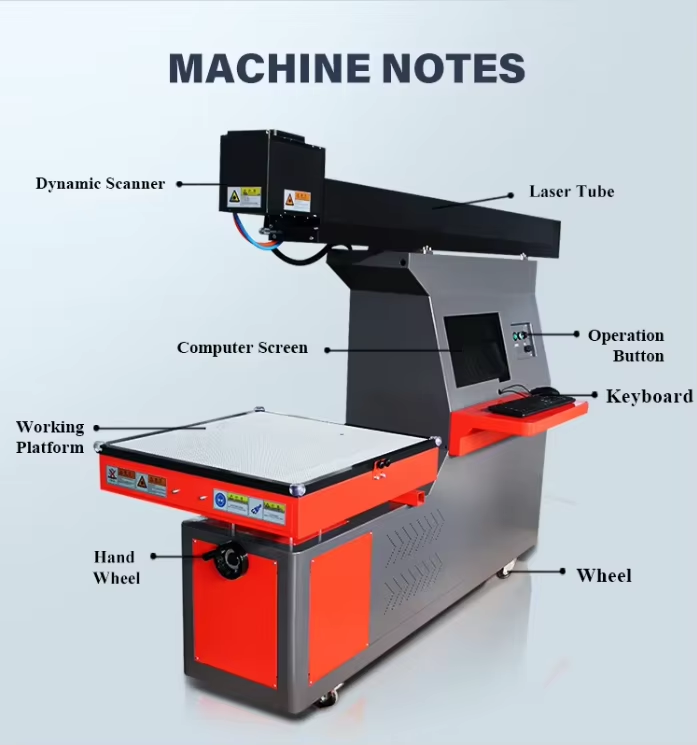

3D CO2 machine notes

3D CO2 details

Specification

Laser tube type	CO2 Sealed Glass Laser TableV
Laser tube	Reci
Laser Source Power	100W / 130W
Laser Wavelength	CO2 Laser 10.64μm
3D Dynamic Focusing System	CK Galvo 3D
Control Software	3D Laser
Marking Area	400 * 400mm (F=450mm) 500 * 500mm (F=550mm) 600 * 600mm ( F=650mm) optional
Chiller	CW5000/CW5200
Computer	Industry computer with Windows
Worktable Type	Standard Worktable
Marking Speed	7000mm/s
Repetition Precision	0.01mm
Laser Frequency	20khz-200khz
Mini letter size	3mm
File Formats	CAD/DWG/DXF/EPS/AI/CDR/BMP/JPEG/PNG/TIF/STL
Power Supply	110/220V ± 10%, 50/60HZ
Cooling Way	Circulation of Water Cooling
Warranty	1 year for the whole machine
Package size	245010901760mm(LWH)
