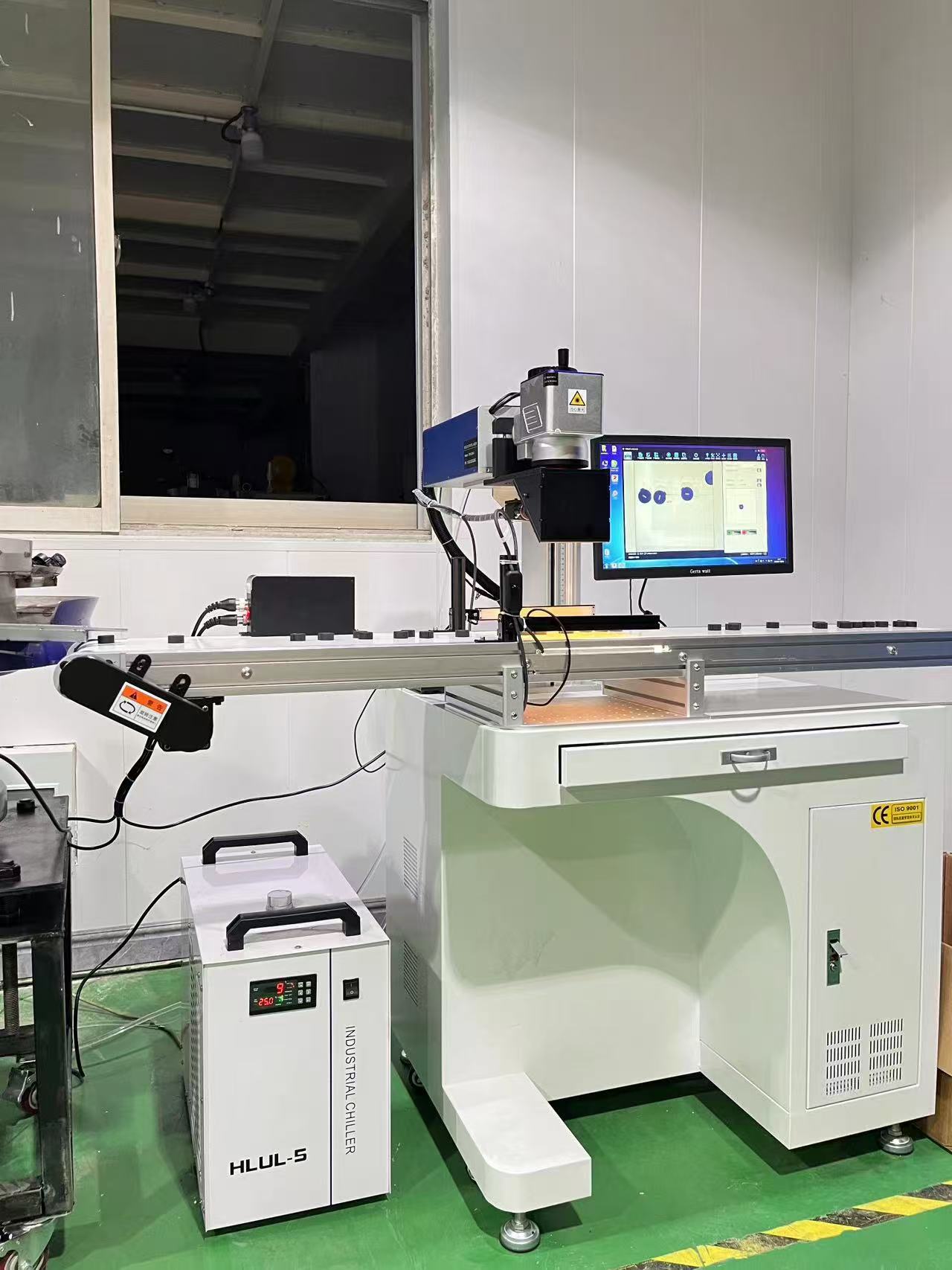

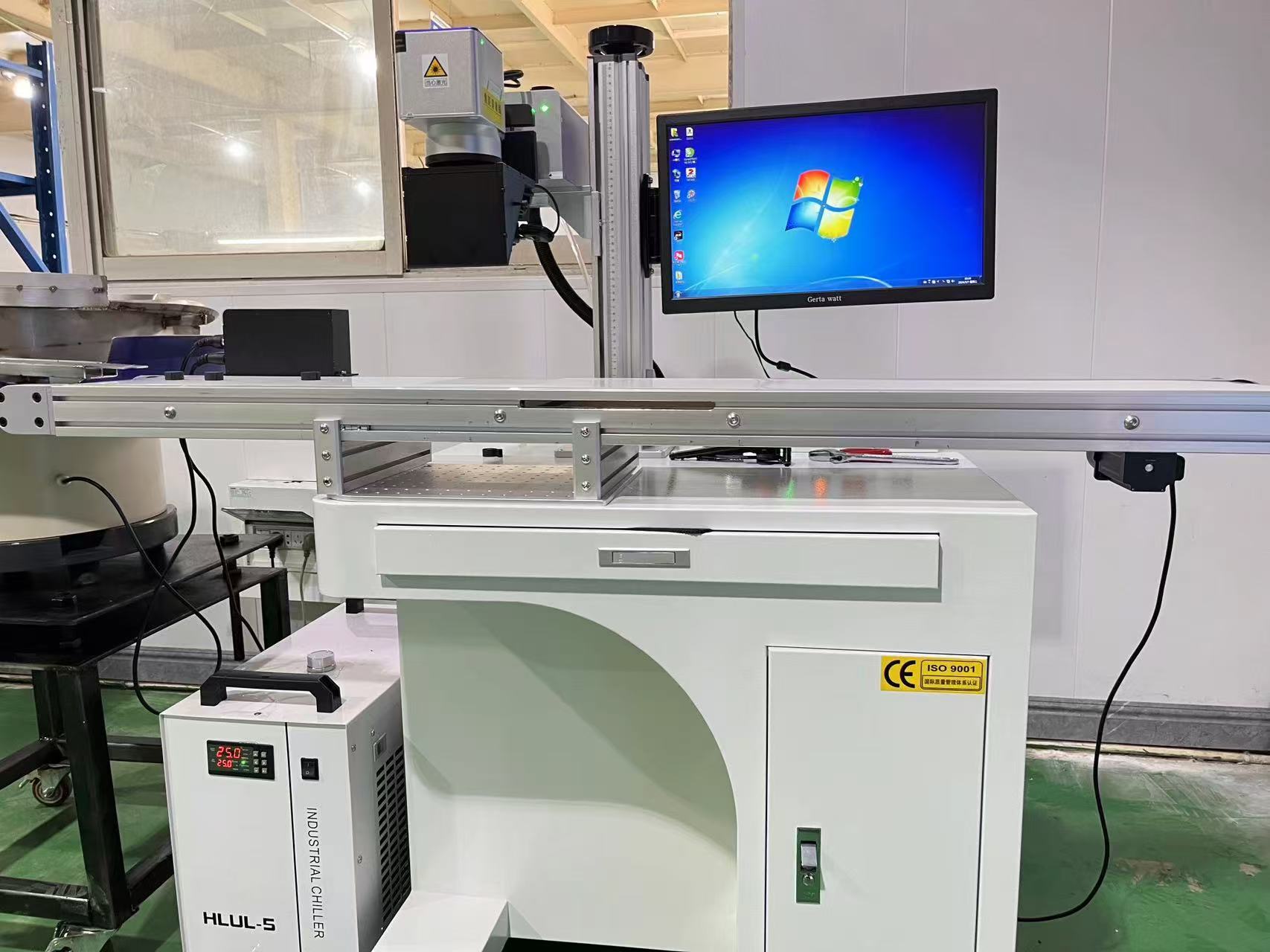

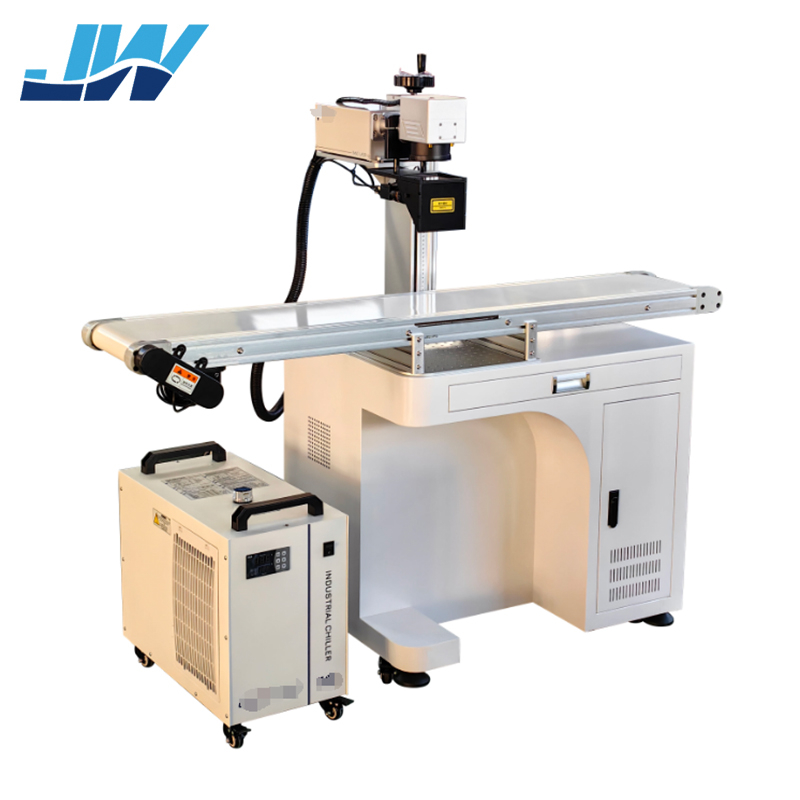

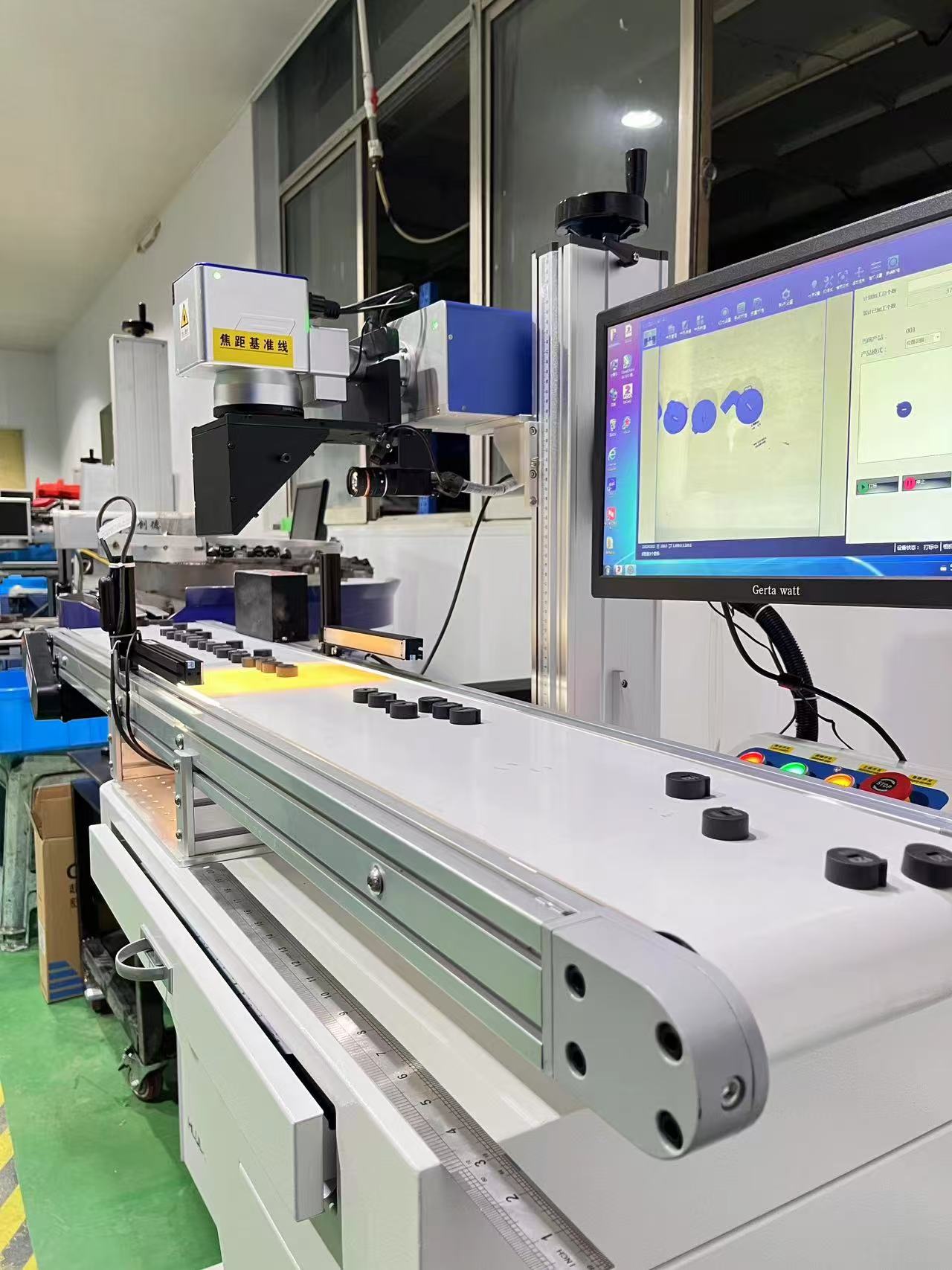

UV Vision Laser Marking Machine, Automatic Recognition And Positioning for Marking, Combined with Conveyor Belt

Our UV visual laser marking machine features high precision, non-contact processing, and clear imaging. Ideal for delicate
materials like glass and plastics, it ensures stable performance, easy operation, and meets diverse industrial marking needs.
The cabinet-type UV marking machine uses a 355nm UV laser.

Availability:

Quantity:



Inquire Add to Basket

Model:
JW-CCD
Brand:
JW
Code:
JW-CCD

PRODUCT DESCRIPTION

Product Parameters

Product name	UV vision laser marking machine
laser source(optional)	CRS/JPT
laser power(optional)	3w/5w/10w
Application materials	Metal and Non-metal
Marking speed	0-8000mm/s
Marking range(optional)	100100mm/150150mm/200*200mm
Laser wavelength	355nm
Laser frequency	20-100KHz
Minimum line width	0.01mm
Minimum character	0.1mm

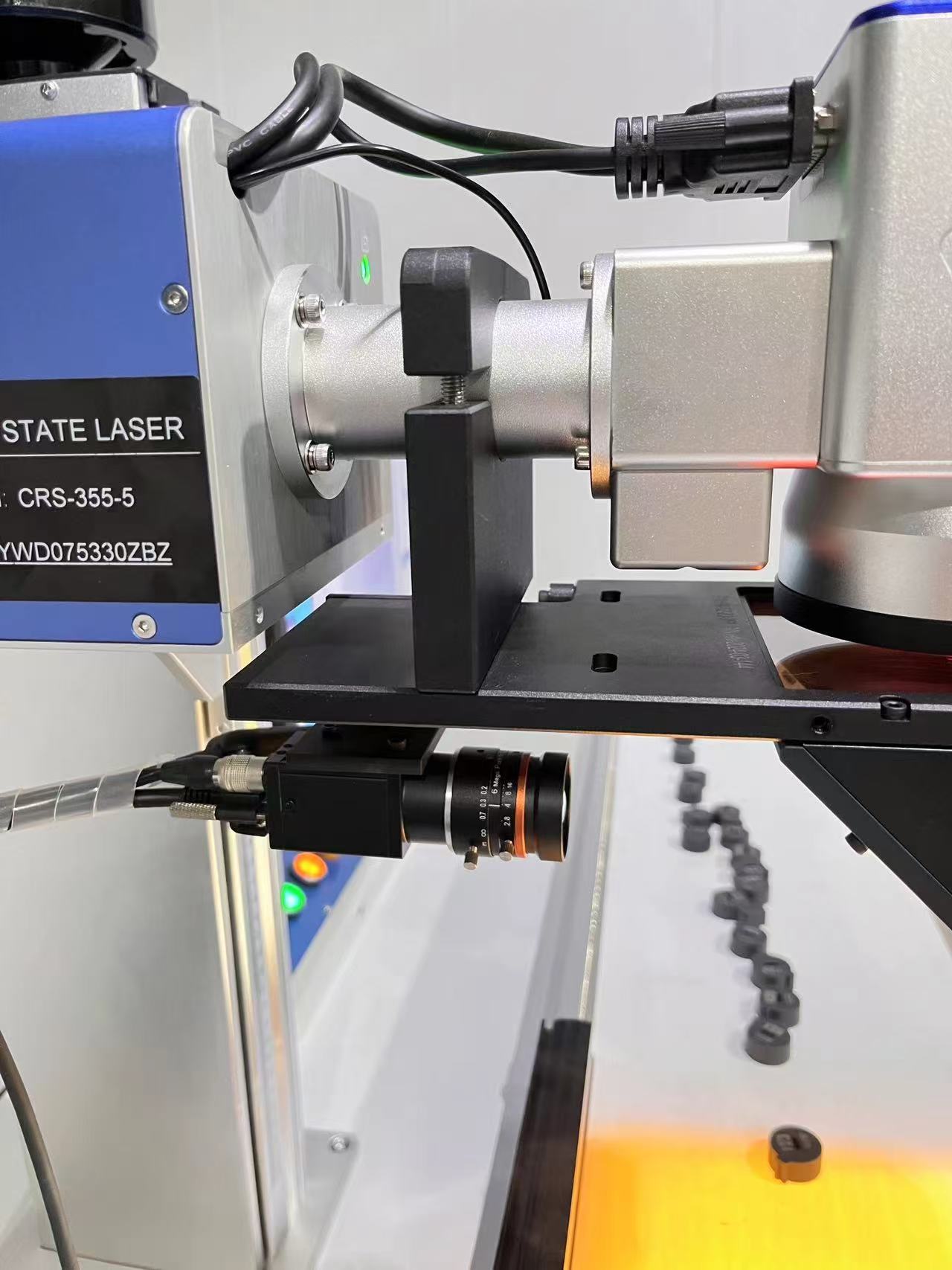

Vision system	with CCD
Control softwave	EZCAD
Cooling system	water cooling
