JW-F20
JW

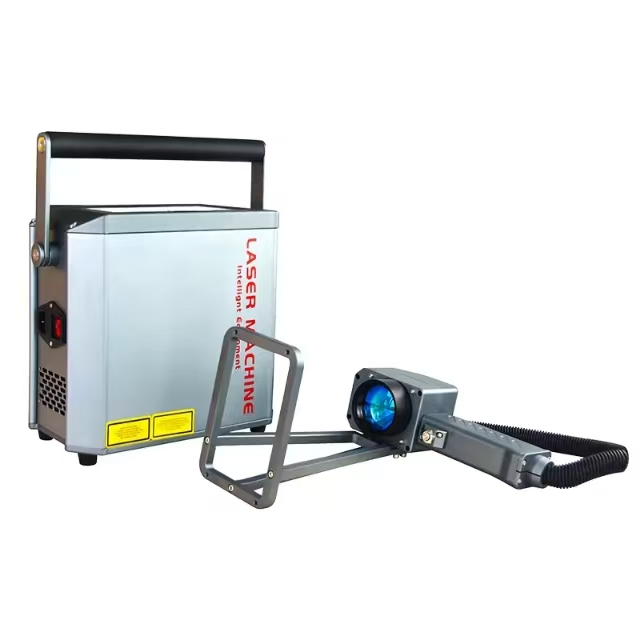

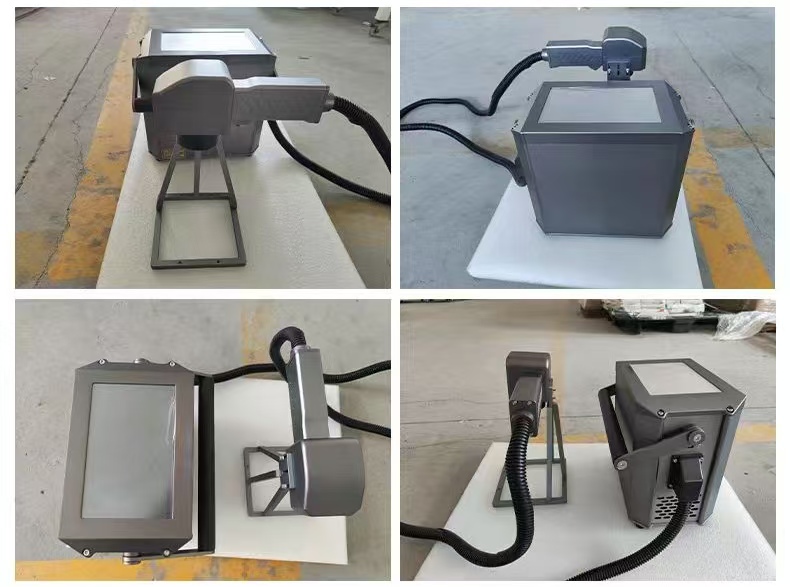

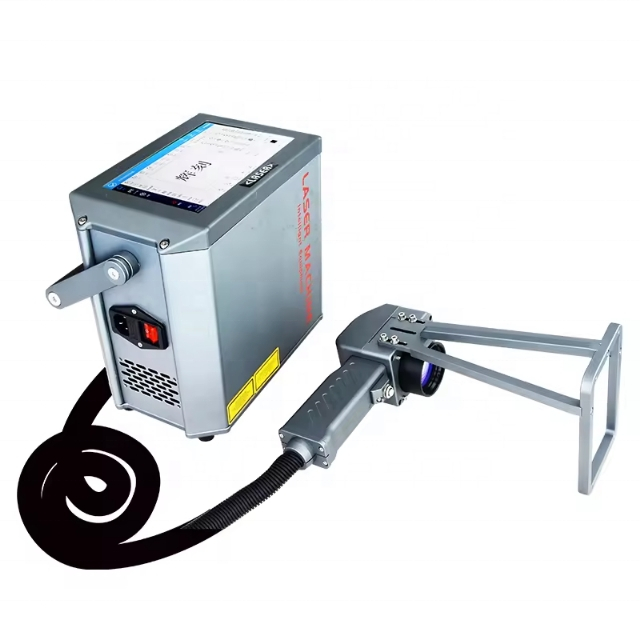

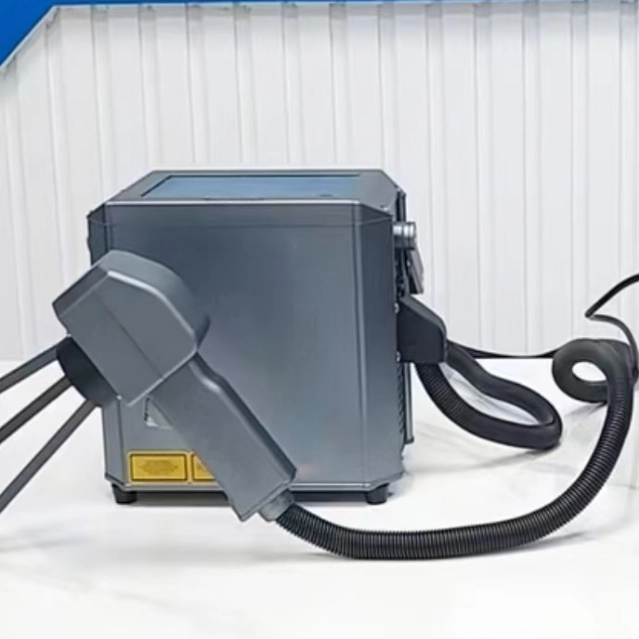

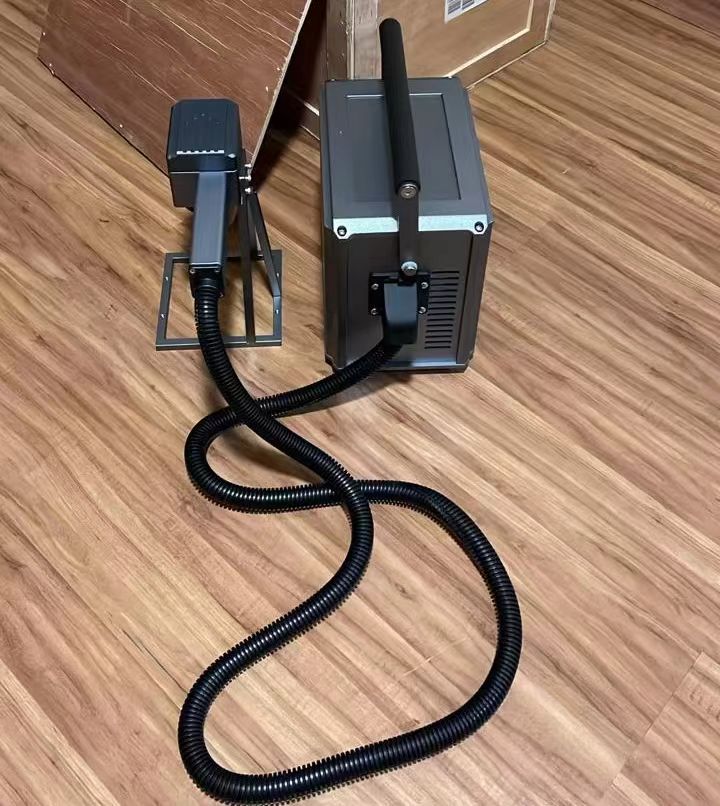

Small handheld marking machine with an aluminum casing, handheld and portable design, with a total net weight of 8.25kg.
Optional battery configuration, easy to carry, suitable for outdoor work.
project | Parameter table | 20W | 30W | |
Overall characteristics | Material of complete machine | Sand blasting oxidation all aluminum structure | ||
Laser | The service life of fiber laser generator is more than 100000 hours | |||
Laser wavelength | 1064nm | |||
Actual output power | ≥20W | ≥30W | ||
Marking speed | ≤12000mm/s | |||

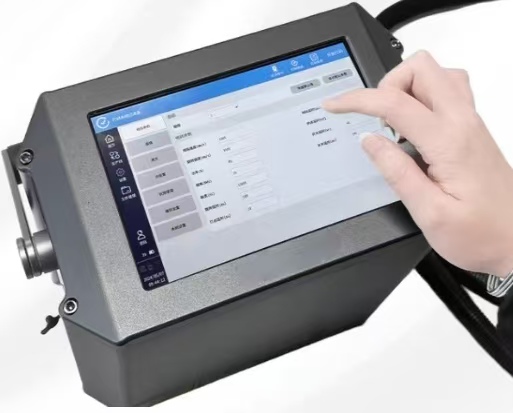

master control | 8 inch touch controller | |||
Cooling system | Normal temperature air cooling | |||
Minimum line width | 0.0012mm | |||
Positioning mode | Red light indication | |||
Number of lines of engraved characters | Within the marking range Any number will do | |||
Production line speed | 0 ~ 130m / min (depending on the material) | |||
Software introduction | Multilingualism | English, French, Spanish, German, Chinese, Russian, Arabic, etc | ||
Operation authority | Multi user management authority | |||
operating system | Linux system | |||
Inkjet mode | Static, analog and encoder. Three printing modes | |||
Reserved signal | Start printing, printing status, printing completion, fault alarm | |||
data protection | With power-off data protection function | |||
Missing print monitoring | False triggering due to material reflection, providing overspeed alarm function | |||
Remove intersections | Automatically remove intersection points to avoid overlapping | |||
Coding software | It can realize single and dual code sending | |||
Supporting content | typeface | Chinese, English, digital, traditional and other standard font | ||
file format | BMP/DXF/HPGL/JPEG/PLT | |||
bar code | Code39, code128, code126, QR, Zhizhi code (optional) | |||
Parameter | Power Supply | Standard configuration: external power supply 220V / 50Hz | ||
Power consumption | 200W | |||
Net machine weight | Handheld case: 7kg, handpiece: 1.25Kg, total weight after carton packaging: 8.25kg | |||

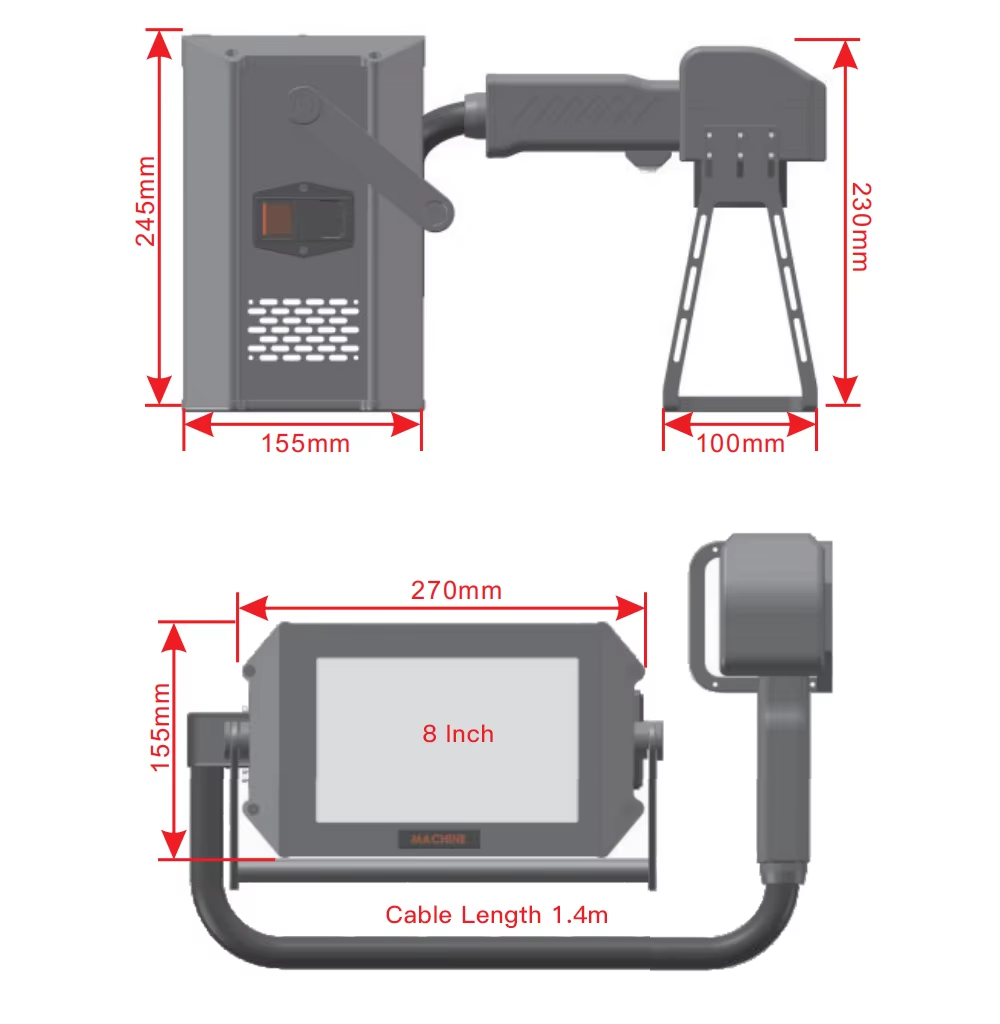

Overall dimensions | Case: 270 * 155 * 245, hand-held head: 240 * 100 * 230mm, packing case: 470 * 410 * 360mm | |||
Battery endurance | Optional: built in battery: 12000ma normal use time 12-16 hours | |||
environment | requirement | External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration | ||
| Linux Control System | Marking area | USB flash driver available |
This software supports miltiple formats including PLT, JPG, PCX, DXF, BMP, etc..., and can import barcode, QR code, serial number, date, time content and logo. |
75*75mm, 100*100mm, 70*120mm, 150*150mm |

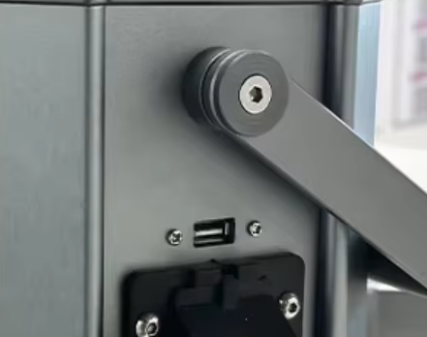

The machine has a USB interface, which can directly read the contents of the USB flash drive, making it easy to handle even outdoor operations. |
Small handheld marking machine with an aluminum casing, handheld and portable design, with a total net weight of 8.25kg.
Optional battery configuration, easy to carry, suitable for outdoor work.
project | Parameter table | 20W | 30W | |
Overall characteristics | Material of complete machine | Sand blasting oxidation all aluminum structure | ||
Laser | The service life of fiber laser generator is more than 100000 hours | |||
Laser wavelength | 1064nm | |||
Actual output power | ≥20W | ≥30W | ||
Marking speed | ≤12000mm/s | |||
master control | 8 inch touch controller | |||
Cooling system | Normal temperature air cooling | |||
Minimum line width | 0.0012mm | |||
Positioning mode | Red light indication | |||
Number of lines of engraved characters | Within the marking range Any number will do | |||
Production line speed | 0 ~ 130m / min (depending on the material) | |||
Software introduction | Multilingualism | English, French, Spanish, German, Chinese, Russian, Arabic, etc | ||
Operation authority | Multi user management authority | |||
operating system | Linux system | |||
Inkjet mode | Static, analog and encoder. Three printing modes | |||
Reserved signal | Start printing, printing status, printing completion, fault alarm | |||
data protection | With power-off data protection function | |||
Missing print monitoring | False triggering due to material reflection, providing overspeed alarm function | |||
Remove intersections | Automatically remove intersection points to avoid overlapping | |||
Coding software | It can realize single and dual code sending | |||
Supporting content | typeface | Chinese, English, digital, traditional and other standard font | ||
file format | BMP/DXF/HPGL/JPEG/PLT | |||
bar code | Code39, code128, code126, QR, Zhizhi code (optional) | |||
Parameter | Power Supply | Standard configuration: external power supply 220V / 50Hz | ||
Power consumption | 200W | |||
Net machine weight | Handheld case: 7kg, handpiece: 1.25Kg, total weight after carton packaging: 8.25kg | |||
Overall dimensions | Case: 270 * 155 * 245, hand-held head: 240 * 100 * 230mm, packing case: 470 * 410 * 360mm | |||
Battery endurance | Optional: built in battery: 12000ma normal use time 12-16 hours | |||
environment | requirement | External temperature: 0 ℃ - 45 ℃; Humidity ≤ 95%; Non condensing; No vibration | ||
| Linux Control System | Marking area | USB flash driver available |
This software supports miltiple formats including PLT, JPG, PCX, DXF, BMP, etc..., and can import barcode, QR code, serial number, date, time content and logo. |
75*75mm, 100*100mm, 70*120mm, 150*150mm |
The machine has a USB interface, which can directly read the contents of the USB flash drive, making it easy to handle even outdoor operations. |
