Best CO2 Laser Cutting Machine for Acrylic

Achieving crystal-clear, polished edges and stress-free dimensional stability when processing polymethyl methacrylate (PMMA) acrylic requires high-precision optical alignment and stable thermal management. Whether fabricating architectural signage, retail point-of-sale displays, light guide plates (LGP), or intricate enclosure prototypes, choosing the ideal processing hardware dictates whether cut edges emerge perfectly flame-polished or marred by striations, melt-back, and internal stress cracks. Fabricators and industrial production teams evaluate prospective cutting platforms against rigorous optical, mechanical, and motion-control criteria to maintain high yields and eliminate secondary manual polishing.

Evaluating core laser tube stability, motion system dynamics, exhaust extraction architecture, and control software helps industrial procurement teams identify top-tier equipment providers such as JWLASER.

Photothermal Interactions and Optical Power Requirements for PMMA Fabrication

Understanding the photothermal interaction between 10.6$\mu$m infrared laser beams and acrylic polymers is essential for determining optimal machine wattage. PMMA exhibits high spectral absorption in the far-infrared region, causing localized vaporization rather than gross mechanical melting when exposed to focused laser radiation.

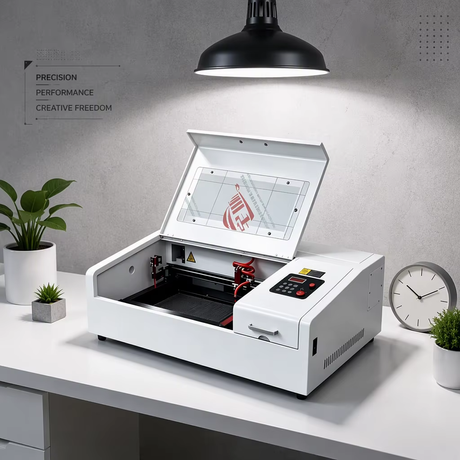

To achieve smooth, optical-grade flame-polished edges directly from the cutting bed, the laser source must deliver continuous, stable power output with minimal TEM00 beam mode degradation. While entry-level desktop models like the 3020 CO2 Laser Engraving Machine 40W 50W Desktop Laser Cutter 300*200mm for Wood Acrylic excel at precision prototyping and thin sheet engraving, industrial-scale acrylic processing demands higher wattage configurations.

Tip: Select continuous-wave (CW) metal RF or high-stability glass CO2 laser sources with active dual-stage chiller integration to prevent power droop during long cutting runs on thick cast acrylic sheets.

Motion Control Dynamics and Structural Bed Architecture

The mechanical frame and motion control architecture dictate whether a CO2 laser cutter can maintain sub-millimeter tolerances without introducing mechanical chatter marks along cut edges. High-speed vector movement requires a heavy, stress-relieved welded steel frame equipped with high-precision linear guide rails and hybrid stepper or digital AC servo motors.

When cutting acrylic, traditional flat honeycomb tables can reflect laser energy back into the underside of the sheet, causing flash marks and localized pitting. Industrial systems utilize knife-blade (slat) beds or pin-point support arrays that minimize bottom-surface contact, ensuring clean beam passthrough. For high-throughput textile and flexible sheet production running alongside rigid acrylic processing, manufacturers often deploy specialized automation platforms like the 1612 Auto Feeding CO2 Laser Cutting Machine CNC Laser Cutter for Fabric Leather Textile Garment Roll.

Note: Long-focal-length lenses ($3.0''$ or $4.0''$) provide a longer Rayleigh length and straighter waist profile, which is critical for preventing taper on thick $15\text{ mm}+$ acrylic cuts.

Gas Assist and Fume Extraction Optimization

Proper air assist pressure and localized exhaust extraction are critical factors that directly influence acrylic cut edge transparency and operational fire safety. Unlike metal cutting that requires high-pressure oxygen or nitrogen assist, acrylic processing requires a gentle, low-pressure air sweep to purge flammable monomer vapors from the cut kerf without disturbing the molten polymer zone.

Excessive air pressure cools the molten PMMA edge too quickly, creating unwanted frostiness and fine striations rather than a smooth, flame-polished finish. Furthermore, acrylic laser processing produces dense methyl methacrylate fumes that require multi-stage exhaust systems equipped with active carbon and HEPA filtration interfaces to maintain clean factory air and protect optical mirrors.

Tip: Install a secondary flame sensor and automatic gas cutoff safety valve near the cutting head to mitigate fire hazards when processing thick acrylic sheets unattended.

Complementary Laser Technologies for Multi-Material Operations

Comprehensive manufacturing facilities frequently expand their production capabilities beyond traditional CO2 cutting to meet growing client demands for fine coding, micro-marking, and multi-material assembly.

To achieve high-density vector graphics, 2D QR codes, or direct brand serialization on plastic packaging and electronic enclosures, packaging lines often incorporate specialized equipment listed under the main Laser Marking Machine series. Similarly, for precision processing of heat-sensitive polymers, glass, and micro-electronics, facilities cross-reference performance against advanced cold-laser solutions such as the UV Laser Marking Machine.

Note: Integrating unified DSP controllers across your laser cutting and marking workstations streamlines operator training and reduces software setup times across production shifts.

Conclusion

Selecting the best CO2 laser cutting machine for acrylic requires a thorough evaluation of optical beam quality, frame stability, lens focal length, low-pressure air assist tuning, and exhaust management. By matching machine wattage and motion control precision to specific sheet thicknesses, fabricators achieve crystal-clear, flame-polished edges directly off the machine bed while maximizing production throughput.

To equip your fabrication facility with high-performance laser cutting and engraving technology, explore engineered solutions from JWLASER. JWLASER supplies industrial CO2 laser cutters, marking systems, and custom automation designed to meet rigorous global manufacturing standards.

FAQ

Q: What is the difference between cast and extruded acrylic when laser cutting?

A: Cast acrylic cuts with ultra-smooth, flame-polished edges and engraves with a high-contrast frosty white finish, whereas extruded acrylic melts slightly faster but can produce burred edges and lower engraving contrast.

Q: Why does low air assist pressure produce better acrylic edges?

A: Low air assist pressure purges flammable vapors without chilling the cut kerf too quickly, allowing the molten PMMA edge to flow slightly and self-polish before solidifying into a clear finish.

Q: How do I prevent bottom-edge flash marks when cutting acrylic sheets?

A: Use a knife-blade slat table or elevated pin support system rather than a flat honeycomb bed, and ensure air extraction pulls vapors downward away from the material underside.

Q: Does JWLASER offer custom cutting bed sizes and automated feeding systems?

A: Yes, JWLASER provides bespoke engineering solutions, including large-format bed dimensions, auto-feeding roll attachments, dual-head configurations, and integrated vision positioning cameras.
