JW-P100
JW
|
Product Description
Laser cleaning is a new technology based on the interaction between laser and matter, which can achieve the effect of removing contaminants and attachments on the surface of objects. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, precise cleaning, "green" environmental protection, and on-line capability, and is particularly suitable for high-speed on-line cleaning of designated areas.
|

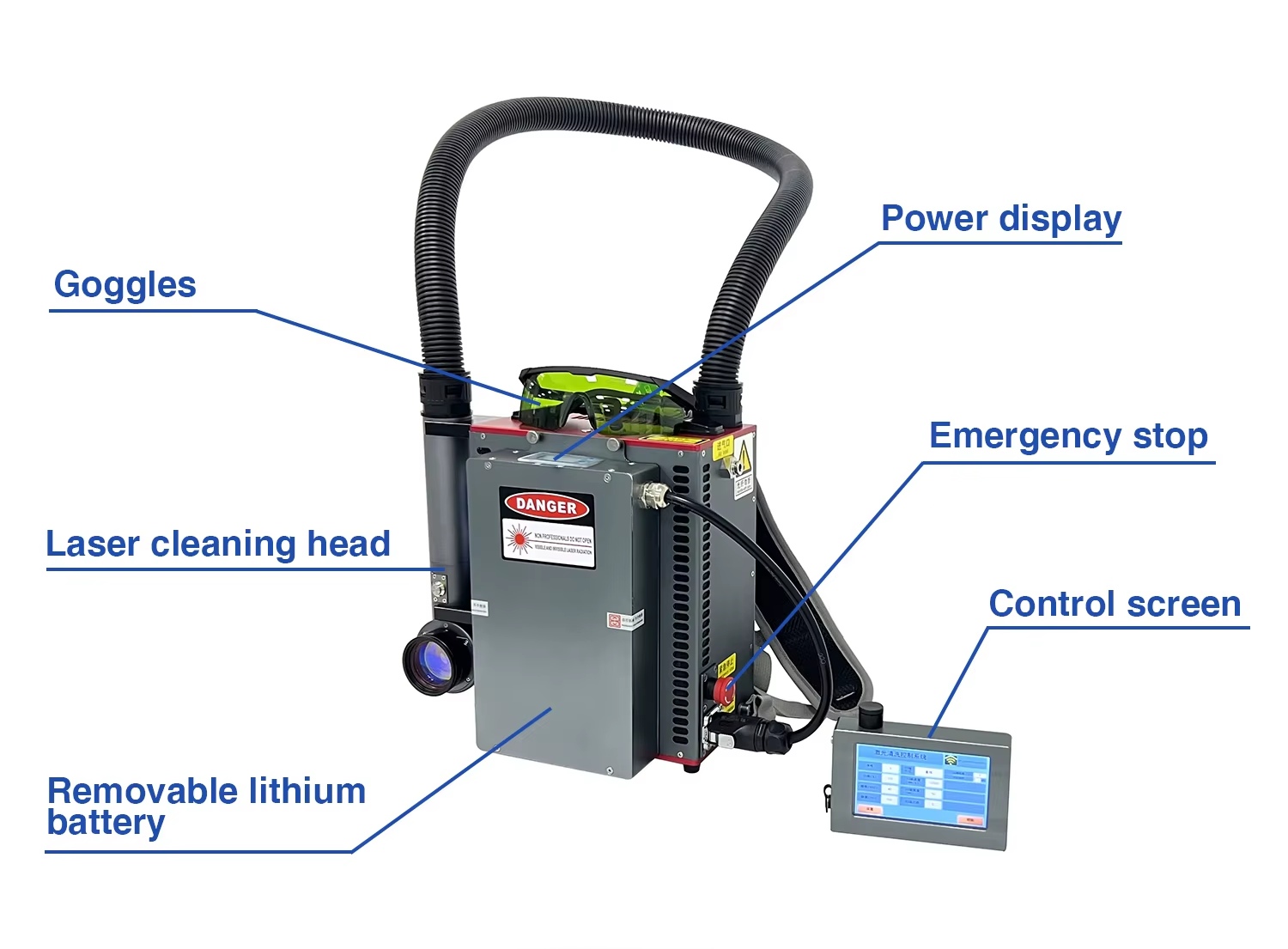

Product structure and dimensions

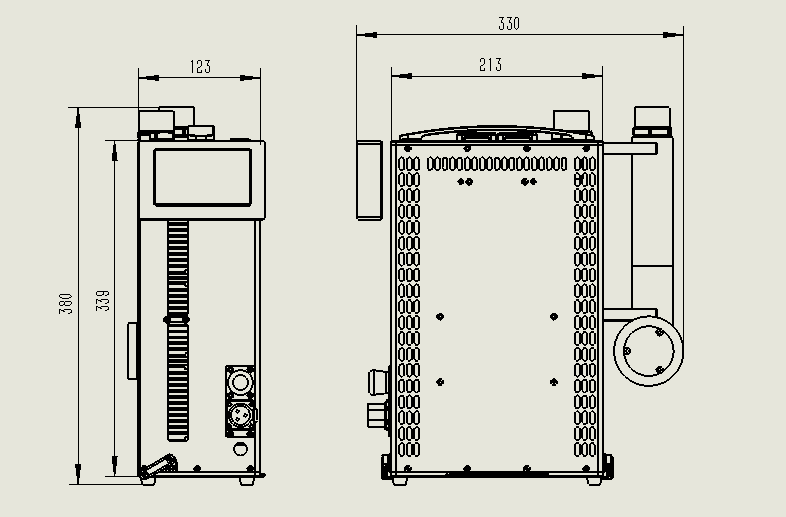

Laser cleaning machine (excluding battery)

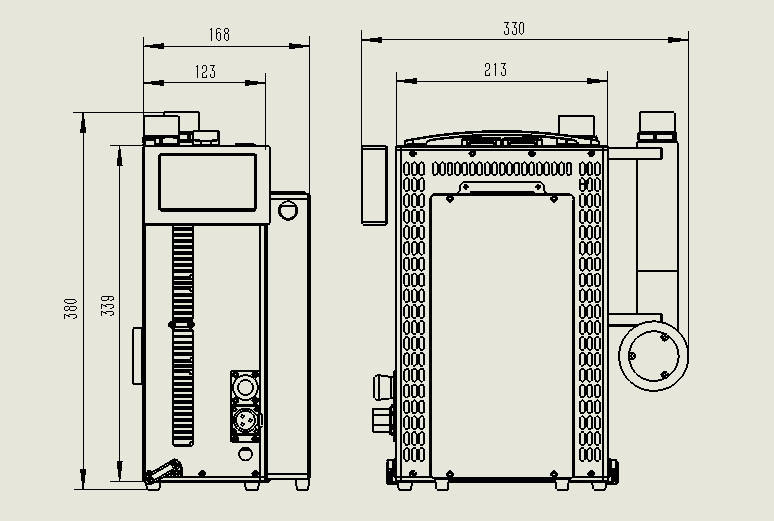

Laser cleaning machine (including battery)
|
Product Parameters
Operating environment | |
Machine | JW-P100 |
Power supply | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
Optional battery: 100W, continuous operation for 80-90 minutes | |
Total machine power consumption | ＜600W |
Working environment temperature | 5℃～40℃ |
Working environment humidity | ≤80% |
Optical parameters | |
Average laser power | ≥100W |
Power instability | ＜5% |
Laser Working Mode | Pulse |
Pulse width | 150-190ns |
Maximum monopulse energy | 1.7mJ |
Power adjustment range (%) | 10-100 (gradually adjustable) |
Repetition frequency (kHz) | 20-200 (gradually adjustable) |
Optical fiber length | 1.5m |
Cooling way | Air-cooling |
Cleaning head parameters | |
Scanning range (length * width) | 0-100mm, continuously adjustable; Dual-axis supports 8 scanning modes; |
Scanning speed | Maximum 10 meters per second |
Field lens focal length (mm) | 160mm（optional 210mm/254mm/330mm/420mm） |
Depth of focus | Approximately 5mm |
Mechanical parameters | |
Host dimensions (length, width, height) | Approximately 213mm * 123mm * 339mm (excluding battery) |
Approximately 213mm * 168mm * 339mm (including battery) | |
Dimensions after packaging (length, width, height) | Approximately 600*400*360mm (excluding battery) |
Approximately 600*400*360mm (including battery) | |
Weight of the main unit (including the cleaning head) | Approximately 8.5Kg (excluding battery) Approximately 12Kg (including battery) |
Weight after packaging | Approximately 15.5Kg (excluding battery) Approximately 19Kg (including battery) |
Weight of the cleaning head | ＜0.75Kg |
Operation method | Hand-held |
Control method | Wireless control screen |
|

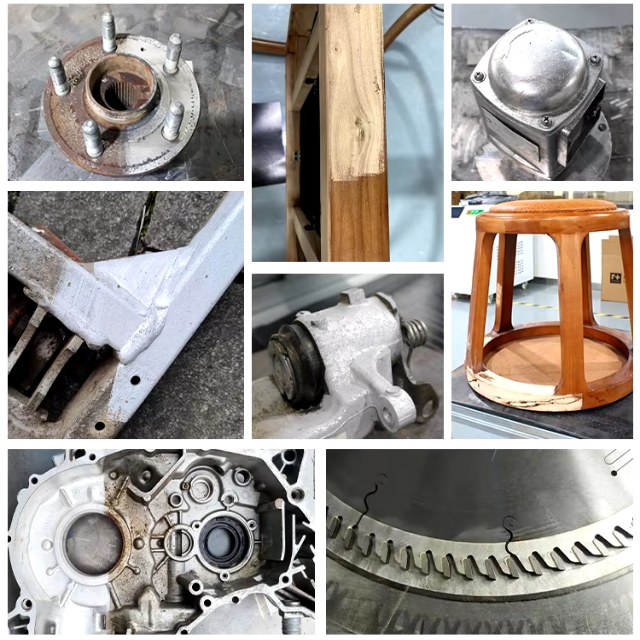

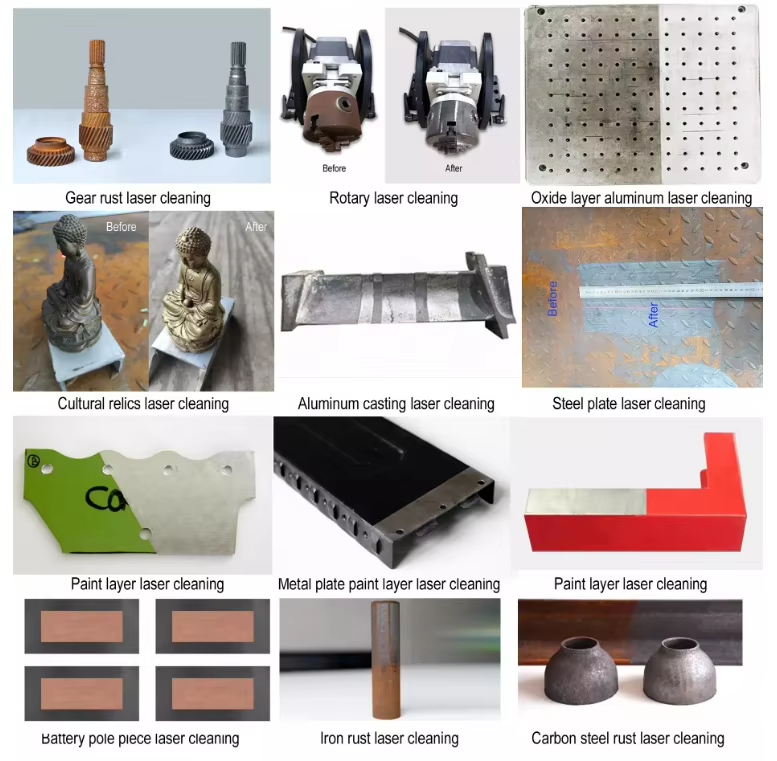

Application Feild
This pulsed laser cleaning machine is a new generation of high-tech products for surface treatment, which is easy to install, operate and automate. It is simple to operate: just turn on the power and start the equipment, and then it can perform cleaning without chemical reagents, media, dust, or water. It can clean curved surfaces with high cleanliness. It can remove resin, paint, oil stains, smudges, dirt, rust, coatings, platings, and oxide layers from the surface of objects. Moreover, it has a wide range of industrial applications, covering shipping, auto repair, rubber molds, high-end machine tools, railways, and environmental protection, etc.
|
Product Description
Laser cleaning is a new technology based on the interaction between laser and matter, which can achieve the effect of removing contaminants and attachments on the surface of objects. Compared with traditional cleaning methods, laser cleaning has the advantages of non-contact, no damage to the substrate, precise cleaning, "green" environmental protection, and on-line capability, and is particularly suitable for high-speed on-line cleaning of designated areas.
|
Product structure and dimensions
Laser cleaning machine (excluding battery)
Laser cleaning machine (including battery)
|
Product Parameters
Operating environment | |
Machine | JW-P100 |
Power supply | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
Optional battery: 100W, continuous operation for 80-90 minutes | |
Total machine power consumption | ＜600W |
Working environment temperature | 5℃～40℃ |
Working environment humidity | ≤80% |
Optical parameters | |
Average laser power | ≥100W |
Power instability | ＜5% |
Laser Working Mode | Pulse |
Pulse width | 150-190ns |
Maximum monopulse energy | 1.7mJ |
Power adjustment range (%) | 10-100 (gradually adjustable) |
Repetition frequency (kHz) | 20-200 (gradually adjustable) |
Optical fiber length | 1.5m |
Cooling way | Air-cooling |
Cleaning head parameters | |
Scanning range (length * width) | 0-100mm, continuously adjustable; Dual-axis supports 8 scanning modes; |
Scanning speed | Maximum 10 meters per second |
Field lens focal length (mm) | 160mm（optional 210mm/254mm/330mm/420mm） |
Depth of focus | Approximately 5mm |
Mechanical parameters | |
Host dimensions (length, width, height) | Approximately 213mm * 123mm * 339mm (excluding battery) |
Approximately 213mm * 168mm * 339mm (including battery) | |
Dimensions after packaging (length, width, height) | Approximately 600*400*360mm (excluding battery) |
Approximately 600*400*360mm (including battery) | |
Weight of the main unit (including the cleaning head) | Approximately 8.5Kg (excluding battery) Approximately 12Kg (including battery) |
Weight after packaging | Approximately 15.5Kg (excluding battery) Approximately 19Kg (including battery) |
Weight of the cleaning head | ＜0.75Kg |
Operation method | Hand-held |
Control method | Wireless control screen |
|
Application Feild
This pulsed laser cleaning machine is a new generation of high-tech products for surface treatment, which is easy to install, operate and automate. It is simple to operate: just turn on the power and start the equipment, and then it can perform cleaning without chemical reagents, media, dust, or water. It can clean curved surfaces with high cleanliness. It can remove resin, paint, oil stains, smudges, dirt, rust, coatings, platings, and oxide layers from the surface of objects. Moreover, it has a wide range of industrial applications, covering shipping, auto repair, rubber molds, high-end machine tools, railways, and environmental protection, etc.
