You see a fiber laser marking machine use a strong laser generator to make a powerful beam. This beam moves through an optical path system. It focuses on the surface of your material. The control system helps guide the process. It makes sure marks are correct. When the laser touches the material, it heats up the area. Sometimes, a chemical reaction happens. This leaves a mark that stays forever.
The laser generator makes a thick laser beam.
The optical path system aims and focuses the beam.
The control system keeps the marks accurate.
The laser works with the material by absorbing and scattering.
The beam heats up the area to make the mark.
Chemical changes can happen for different mark effects.
Fiber laser marking machines use a strong laser beam. They make marks that last on many materials. The marks are very exact and stay for a long time.
Special parts like the galvanometric system and F-theta lens help the machine work fast. They also help it mark things in the right spot. This makes the machines great for factories.
Fiber laser technology is good for the environment. It does not need ink or chemicals. This means there is less trash and it costs less to run.
These machines can mark many kinds of materials. They work on metals and plastics. This makes them useful for many types of businesses.
The machines last for more than 100,000 hours. They do not need much fixing. Fiber laser marking machines save money for marking things for a long time.

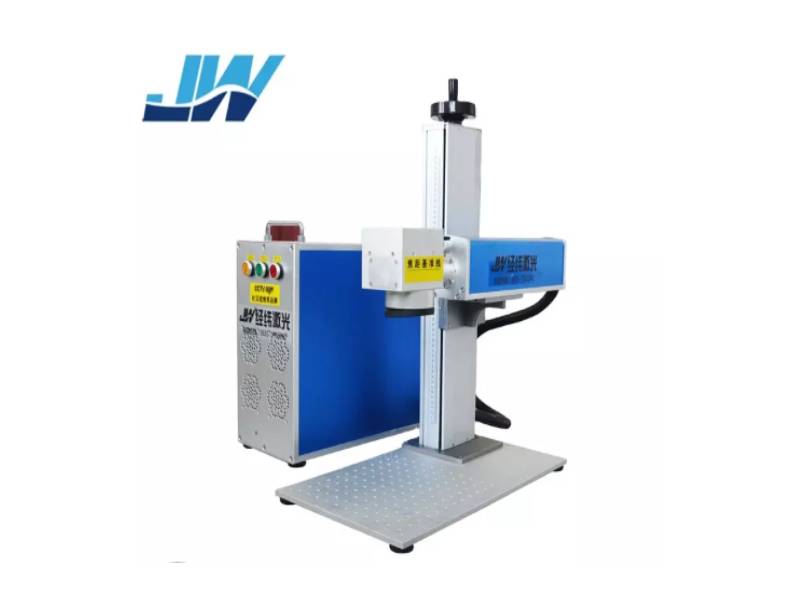

When you open a fiber laser marking machine, you see many parts inside. Each part has a special job in making marks with the laser. JWLASER builds its machines with smart features. These features help you get very accurate and steady results.

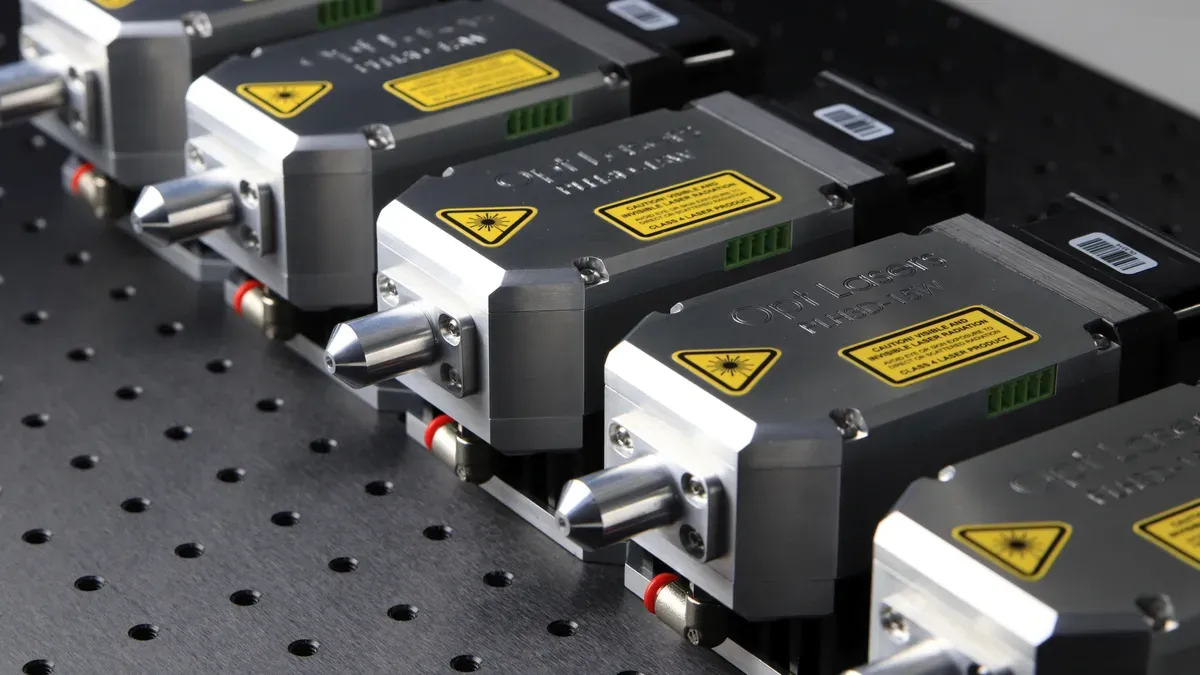

The fiber laser source is the main part of the machine. This part uses a solid optical fiber with rare-earth ions like ytterbium. When you turn on the machine, strong diodes send energy into the fiber. The fiber laser makes a strong beam with a 1064nm wavelength. This beam works best for marking metals. JWLASER uses top laser sources from Raycus, Max, and JPT. These sources give you a great beam and high absorption on metal. The fiber laser cools down well, so you can use it for a long time. You do not need to fix it often, and it saves energy. The fiber laser lets you make marks that last and are easy to see. You can use the machine for over 100,000 hours without many repairs.
The galvanometric system moves the laser beam around. It has two mirrors called galvanometers. These mirrors move fast and with care. They guide the laser beam in X and Y directions. The system follows your design and marks patterns quickly. JWLASER’s machine uses advanced scanners. You can mark things up to twenty times faster than old ways. You get good control and quick changes in direction. The feedback system keeps the mirrors in the right spot. You can mark hard shapes and serial numbers easily. The system also keeps the optics safe from heat. This gives you steady results when making many marks.
Tip: The galvanometric system lets you mark things fast and with care. This is great for factories and big jobs.
The F-theta lens points the laser beam at the material. This lens keeps the focus the same across the whole area. It stops the edges from getting blurry or uneven. Your marks look sharp and clear everywhere. JWLASER uses top F-theta lenses for even energy. Autofocus moves the lens by itself. You do not have to move the material or change the setup for different thicknesses. Autofocus keeps the mark depth the same and makes the job faster. You save time and get good results on metals, plastics, and more.
Aspect | Effect on Laser Marking |
|---|---|
Focus Consistency | Keeps the focus the same everywhere |
Edge Defocus | Stops big spots and uneven energy |
Geometric Distortion | Reduces pattern changes |
Stable Marking Quality | Keeps mark depth and quality steady |
Increased Processing Speed | Makes marking jobs faster |
The control system is like the brain of the machine. You use a computer to design marks and set how you want them. The control board runs the laser, mirrors, and lens. It checks and changes settings while marking. You can change speed, depth, and patterns with easy commands. JWLASER’s machines are easy to use, so you do not need special lessons. The control system keeps the machine steady and accurate. You can make barcodes, serial numbers, and deep marks with no trouble.
The control system checks the output and changes things as needed.
It gets ready for changes and keeps marking steady.
You get the same results even with different shapes or materials.
Note: The control system lets you change your marking jobs and keeps the process steady.
All the parts work together to make the fiber laser marking machine work well. JWLASER uses these smart parts to give you a strong tool for marking. You can mark metals, plastics, and more with great care and strength. The machine is air-cooled and does not need much fixing. You get fast jobs and easy use, so JWLASER’s machine is a good pick for your business.
Knowing how the marking process works helps you get good results. Each step is important for making clear marks that stay on your materials. Let’s see how the fiber laser marking machine works from beginning to end.
First, you turn on the fiber laser marking machine. The fiber laser source makes a strong beam of light. This beam has a wavelength of 1064nm. It works well for metals and many plastics. Strong diodes send light into a fiber cable. The fiber makes the light stronger and more focused. You get a beam that is steady and accurate.
JWLASER uses advanced pulse fiber laser technology. This lets you control how long each pulse lasts. You can make short, strong bursts for deep marks. You can also use longer pulses for softer surface changes. The MOPA setup lets you change the pulse width. You can make color marks on stainless steel. You can also make deep black marks on anodized aluminum. The beam goes through the fiber and reaches the marking head. It does not lose power along the way.
Tip: The fiber laser stays cool. It does not need water or extra fans. This makes marking jobs easy and safe.
After the beam leaves the fiber, it goes through the F-theta lens. This lens focuses the beam to a tiny spot. You get sharp marks every time. The galvanometric system uses mirrors to move the beam fast across the surface. You can mark patterns, text, or codes in just seconds.
Autofocus keeps the beam at the right height. You do not need to change the setup for different materials. The control system lets you change speed, depth, and style of your marks. You can switch from deep engraving to light marking with a few clicks.
When the focused laser beam hits the material, different things happen. The energy from the beam changes the surface in many ways. Here are the main types of interactions:
Interaction Type | Description |
|---|---|
Ablation | Removes a thin layer of material by heating and vaporizing it. |
Oxidation | Makes colored layers on metals by reacting with oxygen. |
Carbonization | Makes organic materials darker for better contrast. |
Color Change | Changes how the surface looks using different laser settings. |
Laser ablation removes material by vaporizing it.
Oxidation makes colored layers on metals.
Carbonization makes organic materials darker for contrast.
Color change changes how the surface looks.
Laser marking uses these effects to make marks that last. Ablation is good for engraving serial numbers. Oxidation lets you add colors to metals. Carbonization makes dark marks on plastics that are easy to read.
JWLASER’s fiber laser engravers use high-quality beams. You can make marks as small as a few microns. The MOPA setup lets you control the process. You can mark without hurting the surface texture. This is important for delicate parts or when you want a smooth finish.
You can use a fiber laser marking machine to make many kinds of marks. Each type has its own use and look. Here is a table to show the options:
Type of Marking | Description |
|---|---|
High contrast marking | Makes dark, easy-to-read marks on plastics by controlling pulse width. |
Corrosion-resistant annealing | Makes oxide marks on metals without changing their strength. |
Color marking | Adds different colors to metals by controlled oxidation. |
Black marking | Makes even black marks on anodized aluminum and other metals. |
You can use high contrast marking for barcodes or QR codes. Annealing is good for medical tools because it does not change the metal’s strength. Color marking lets you add logos or designs in different colors. Black marking gives you bold, clear text on aluminum parts.
JWLASER’s fiber laser marking machines give you full control. You can switch between types of marks by changing the settings. The advanced pulse fiber laser technology and MOPA setup help you get the result you want. You can fiber laser engrave jewelry or machine parts.
Note: Fiber laser technology gives you marks that last for years. You do not need ink or chemicals. The process is clean and safe for you and the environment.
The laser marking process gives you flexibility and accuracy. You can mark metals, plastics, and more with one machine. JWLASER’s fiber laser marking machines help you with all your marking needs.
If you want to pick a laser marking machine, you should know how fiber laser technology is different from other types. Let’s see how fiber laser marking is better than CO2 and UV laser systems.

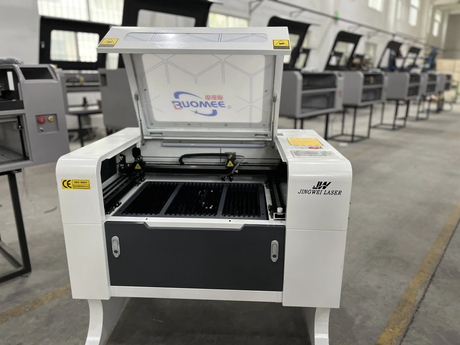

CO2 lasers are used for marking things like wood, glass, and plastics. Fiber laser marking machines are best for metals and hard plastics. Fiber laser marking is faster and more accurate. You spend less time fixing the machine. Here is a table to compare:
Feature | Fiber Laser Marking Machine | CO2 Laser Marking Machine |
|---|---|---|
Best for | Metals | Non-metals |
Marking speed | Fast | Moderate |
Precision | Very high | Good |
Initial cost | Usually higher | Usually lower |
Maintenance | Lower | Higher |
Long-term industrial use | Strong | Moderate |
Best value for | Metal production | Non-metal engraving |
Fiber laser marking machines are better for metal parts. You save money because you do not need to buy extra supplies or pay for repairs often.
UV laser marking machines use ultraviolet light. They are good for materials that cannot handle much heat and for tiny details. Fiber laser engravers use infrared light and more power. You can make deep marks on metals that last. Here is a quick comparison:
Specification | UV Laser Engraver | Fiber Laser Engraver |
|---|---|---|
Wavelength | ~355nm | ~1064nm |
Power Output | 5W – 10W | 20W+ |
Engraving Precision | Up to 0.001mm | Up to 0.001mm |
Marking Speed | 800 – 1000 mm/sec | 800 – 1200 mm/sec |
Material Suitability | Titanium, glass, plastics | Stainless steel, aluminum |
Cost Efficiency | Lower upfront | Higher upfront |
Application Focus | Fine detail, low heat | Deep, high-volume marking |
UV lasers are good for marking glass or titanium with little heat.
Fiber laser marking machines make deep marks on metals for cars and planes.
Pick a UV laser if you need tiny marks on sensitive materials. Pick a fiber laser if you want fast, strong marks on metals.
Fiber laser technology has many good points:
You do not need ink or chemicals, so it is good for the planet.
You save money because you do not buy extra supplies.
Fiber laser marking machines use less energy and need less fixing.
You can mark for over 100,000 hours with little stopping.
You get steady, high-quality marks on metals and plastics.
Tip: Fiber laser marking helps you save money, protect nature, and keep your work going without problems.
Fiber laser marking gives you a strong, cheap, and clean way to mark things.
Laser marking lets you put information on many things. The marks stay forever. You can use a laser marking machine on metals, plastics, and for special jobs. Let’s see how these machines help in different fields.
A fiber laser marking machine can mark many metals and alloys. Here are some examples:
Aluminum: You can mark alloys like 380 and 6061. It works on die cast, pure, and anodized aluminum. Deep marks stay clear after anodizing.
Steel: You can mark any steel alloy, like carbon steel and die steel. Laser engraving makes white marks that are easy to see.
Stainless Steel: Grades 304 and 316 are used a lot. Laser annealing makes marks that do not rust.
Anodized Aluminum: You can mark before or after anodizing. The marks still stop rust.
Magnesium: You get black or white marks that stand out.
Lead: You can make small marks with little energy.
Zinc: Laser etching gives clear marks on many zinc alloys.
You get strong, easy-to-read marks on all these metals. Fiber laser marking is good for jewelry, tools, and machine parts.
You can also use a laser marking machine on plastics and engineering materials. Each plastic acts differently with a fiber laser. Pigments and additives change how the laser works. For example, white Delrin or clear polypropylene may not mark well. But colored plastics like ABS and polycarbonate work great. You should test your plastic first to find the best settings. Fiber laser engravers let you add serial numbers, logos, or barcodes to many plastic parts.
Tip: Always test your plastic before big jobs. This helps you get the best marks.
Fiber laser marking machines are used in many industries. Here are some common uses:
Aerospace: Mark parts so you can track them and keep them safe.
Automotive: Add VIN numbers, logos, and codes to car parts.
Electronics: Mark circuit boards and connectors.
Medical Devices: Use annealing to make marks that do not rust.
You can use laser marking for annealing, carbon migration, discoloration, engraving, and etching. JWLASER has different machines for your needs. You can pick a portable handheld unit, a cabinet system, or a flying marker for fast lines. OEM support lets you add special features.
Product Name | Description |
|---|---|
J20H Fiber-Handheld Marking Machine | Portable, supports WIFI/USB/APP for remote control |
HANSFMY20 Flying Fiber Laser Marker | High-speed marking for production lines |
HANSFMUV5 Flying UV Laser Marker | UV laser marking for special materials |
Fiber laser technology gives you very exact and strong marks. You get accuracy down to tiny micrometers. Marks last for years, even in hard places. This makes fiber laser marking a great choice for factories and workshops.
Note: In 2022, fiber laser marking machines made up 44.3% of the world market. More people use them now because they are fast, make good marks, and do not need much fixing.
Laser marking helps you follow rules and keep your products safe and easy to track.
You now understand how a fiber laser marking machine works. This is important for your business. JWLASER gives you marking solutions you can trust. Their machines are good for the planet and make accurate marks. These machines do not touch the material when marking. The marks last a long time. You do not spend much money to use them. Here are some main benefits:
Feature | Benefit |
|---|---|
Premium Laser Sources | Long life and stable performance |
Free Sample Testing | Test quality before you buy |
Lifetime Support | Ongoing help and confidence |
Environmental Safety | No harmful waste or wear |
Knowing how the machine works helps you pick the right one. You can look at all of JWLASER’s machines. Find the best fiber laser marking machine for your job.
You can mark metals like stainless steel and aluminum. You can also mark titanium, brass, and gold. Plastics such as ABS and polycarbonate can be marked too. Fiber laser marking machines are good for many jobs in factories.
Most fiber laser marking machines work for over 100,000 hours. You can use them for many years with little fixing. This makes them a smart choice for your business.
No, you do not need ink or chemicals. The fiber laser marking machine uses only a laser beam. The process is clean and safe for you and nature.
Yes, you can mark curved or uneven surfaces. Many fiber laser marking machines have autofocus and smart controls. These features help you make clear marks on different shapes.
Fiber laser marking is safe if you use the right safety steps. Enclosed systems keep your eyes and skin safe. Always follow safety rules when you use a laser engraving machine.
