JW-4060 60w 80w 100w CO2 Laser Engraving And Cutting Machine for Wood Paper Plastic MDF Fabrics Acrylic

Working range: 400*600mm
Laser power: 60w / 80w / 100w (optional)
Laser tube: EFR or RECI (optional)

Control system: Ruida
Sales Models: Wholesale and Retail
Min Order: 1pc

Availability:

Quantity:



Inquire Add to Basket

Model:
JW-4060
Brand:
JW

Product Description

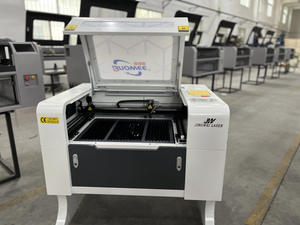

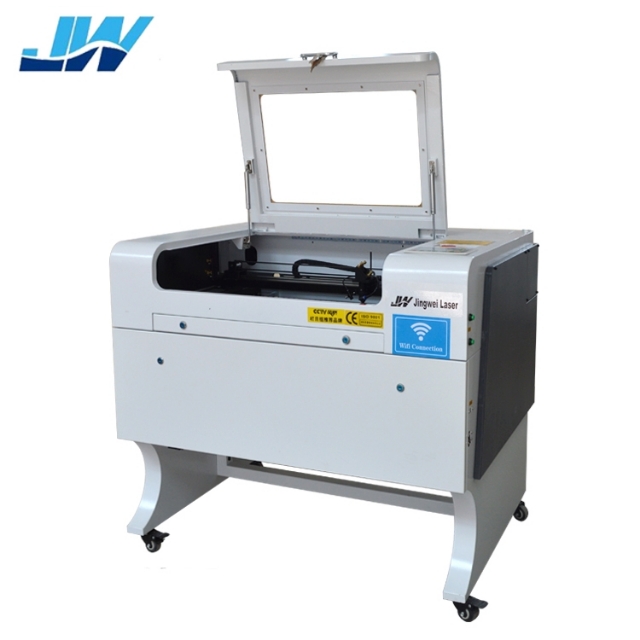

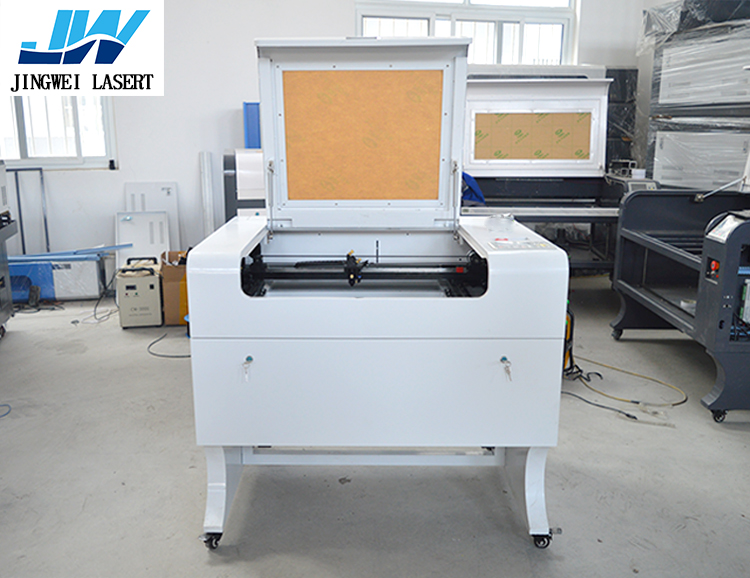

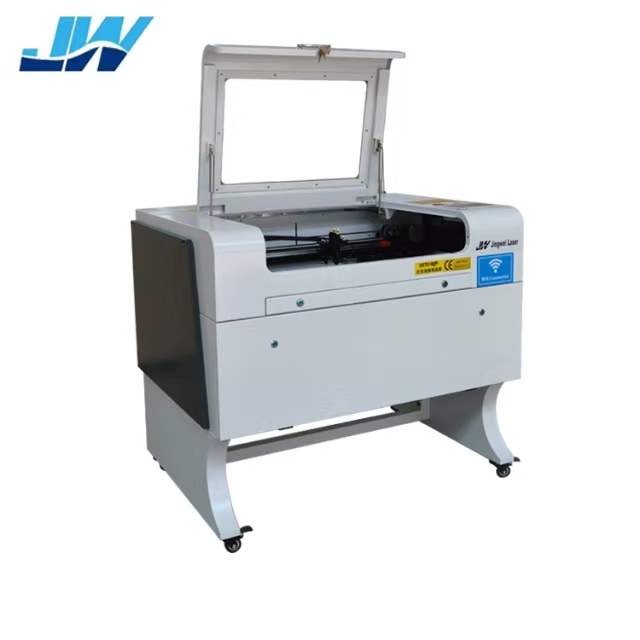

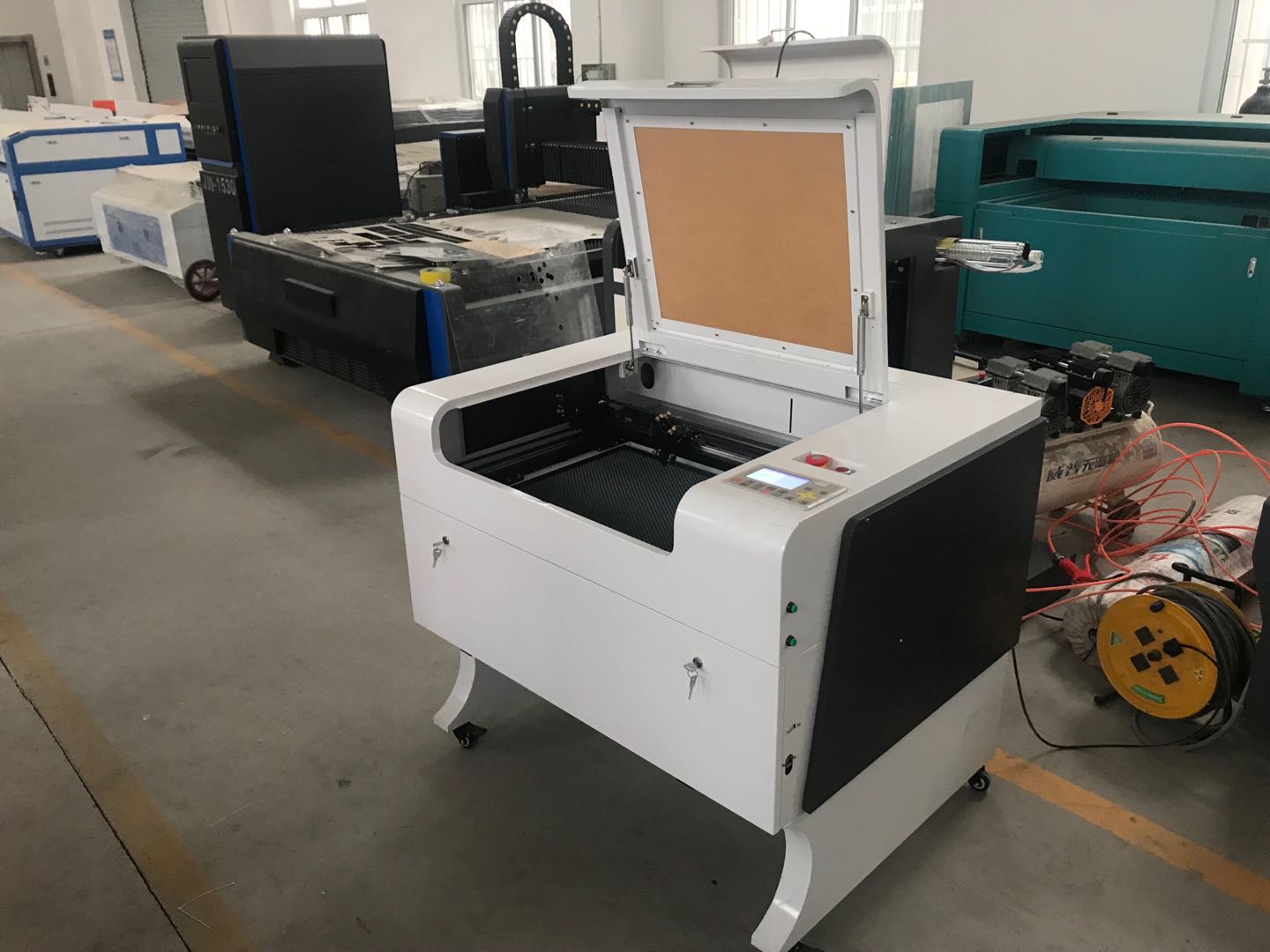

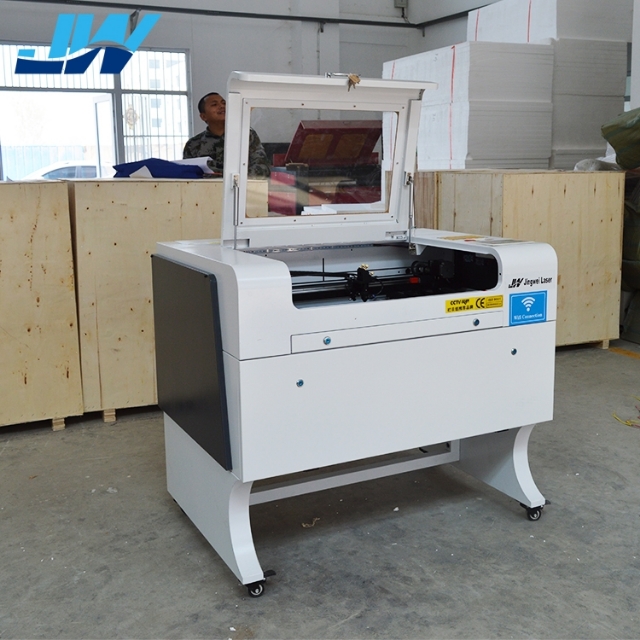

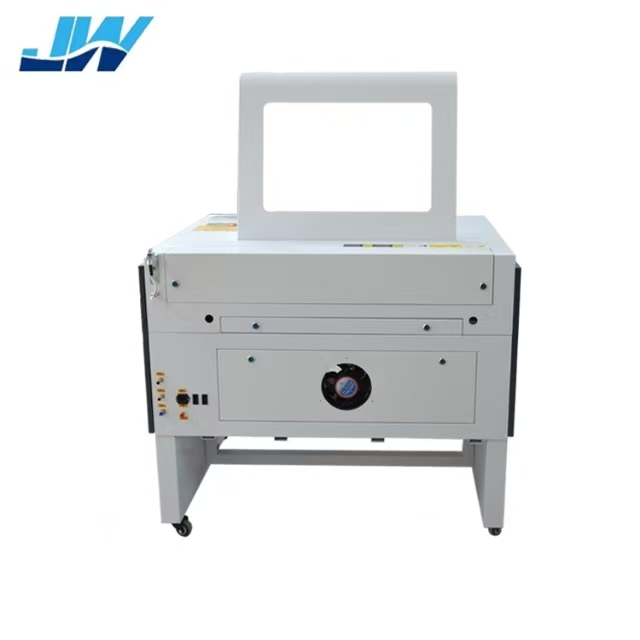

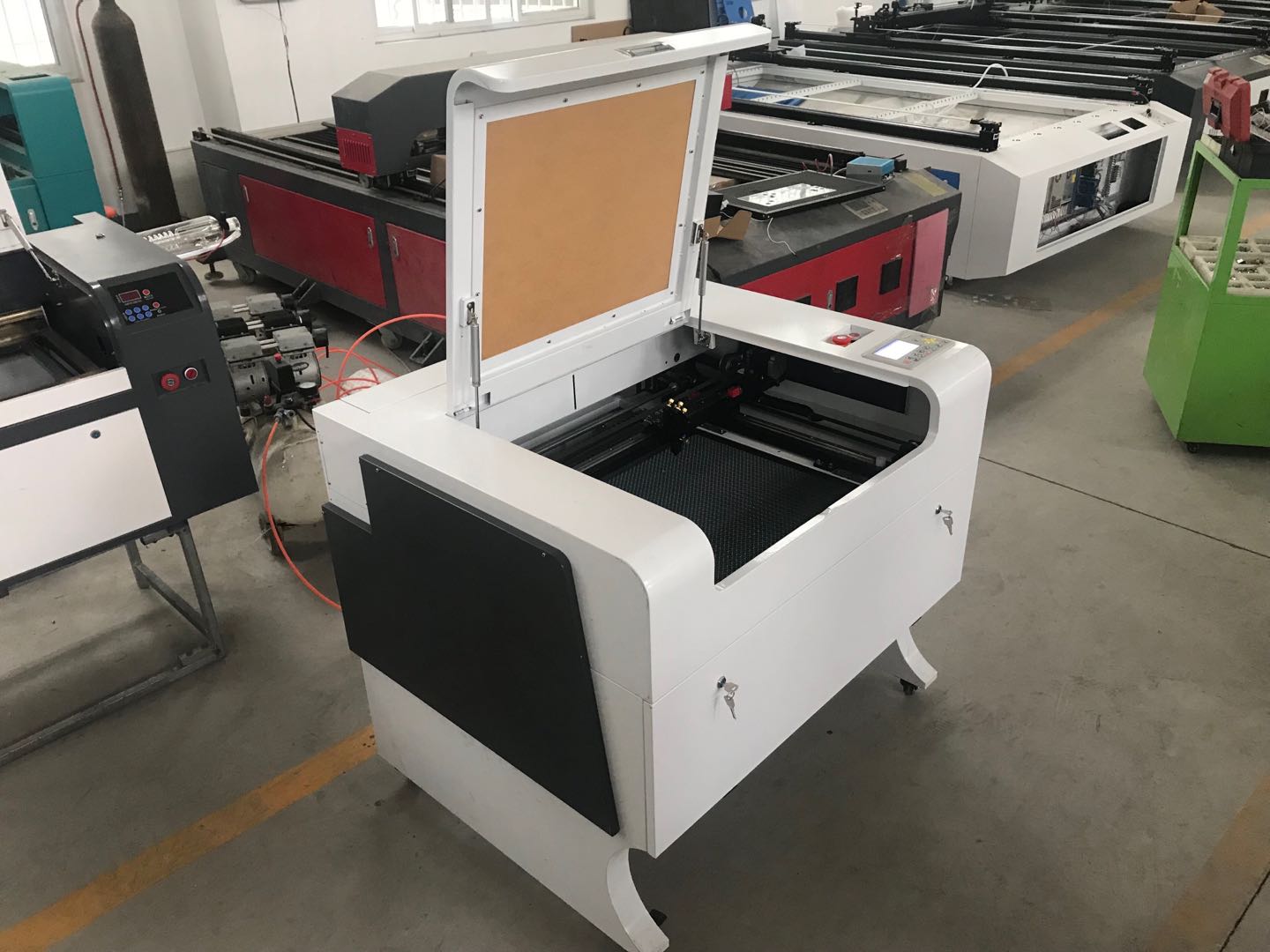

4060 co2 laser cutting machine

The 4060 laser engraving and cutting machine is equipped with a CO2 glass laser tube, and its processing area reaches 600×400mm. It features a fast cutting speed and high precision, and is compatible with a variety of design software. It is suitable for processing non-metallic materials such as acrylic, leather, wood, bamboo, MDF, plywood, plastics, paper, crystal, fabrics, rubber.

Product Packaging

01. Laser Head

High precision retractable laser head, easy to adjust focal length,equippedwith red light positioning system, accuratepositioning, reduce material loss.

4060 co2 laser engraving machine2

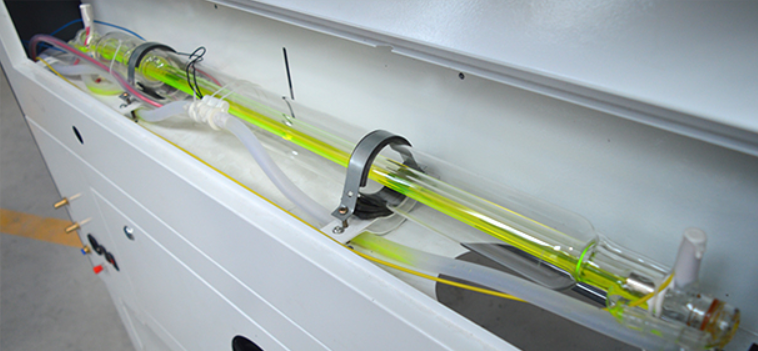

02. Laser Tube

Closed CO2 laser tube, long life (reci Laser tube or EFR laser tube), stable power. Installation ofreinforcement settings, the laser tube is not easy to collide and cause damagewhen moving the machine.

03. Stepper Motor

High operating accuracy, high temperatureresistance, can bear the high temperaturegenerated by high-speed operation, andlow noise.

04. 3m Belt

Wear resistance, good stability, compact structure and low noise.

05. Reflector

the mirror and lens aremade of metal mo ,whichis more precise and durable

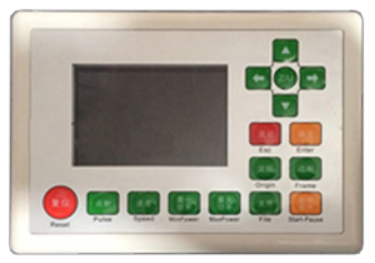

06. Ruida Motherboard

The interface of the control panel is simple, easy to learn, easy to operate and thesystem is stable.

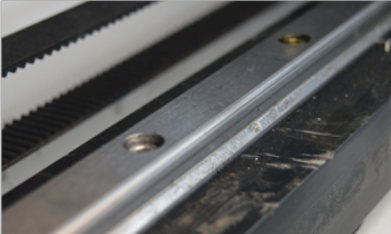

07. Guide

Strong and durable, low friction, lowresistance to operation, can effectivelyimprove working speed.

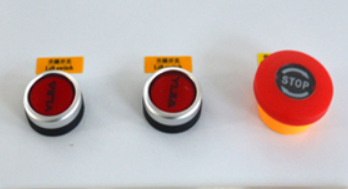

08. Emergency Stop Switch

When the machine is in dangerous state, theemergency shutdown switch cuts off the power supply and stops the operation of theequipmentso as to protect the safety of theperson and equipment.

Product Parameters

Product Parameters
Name	JW-4060 co2 laser engraving and cutting machine
Laser type	CO2 sealed off laser tube
Laser power	60w / 80w / 100w
Laser tube	Reci / EFR
Working range	400*600mm
Application materilas	non-metallic materials
Control system	Ruida
Working plateform	Honeycomb or blade
Engraving depth	0-10mm
Cutting depth	0-10mm
Positioning accuracy	±0.01mm
Cooling method	Water cooling
Air speed	0-500mm/s
Engraving speed	0-18000mm/min
Cutting speed	0-6000mm/min
Minimum forming text	1.8mm*1.8mm
Form letters	1mm*1mm
Support graphics format	AI, PLT, JPG, DXF, BMP, SVG, CDR, DWG

Application Feild

Can be in bamboo, crystal, paper, acrylic glass, marble, cloth, leather, rubber, plastic and so on. Clothing, embroidery, cloth toys, home decoration cloth art, handbags, gloves, toy industry in the leather, leather cutting and surface carving. Handicrafts, models, advertising, decoration, electrical appliances, plastic industry acrylic plate, medium density decorative.

雕刻机样品图

Payment & Shipping

1.The delivery lead time would be 2-7 working days after receiving the payment.

2.As for the wholesalers/distributors, we could send the cargo by air, by sea or by railways via reliable forward.

3. Payment: T/T, Paypal, Alipay

4. Currency of payment: USD / RMB

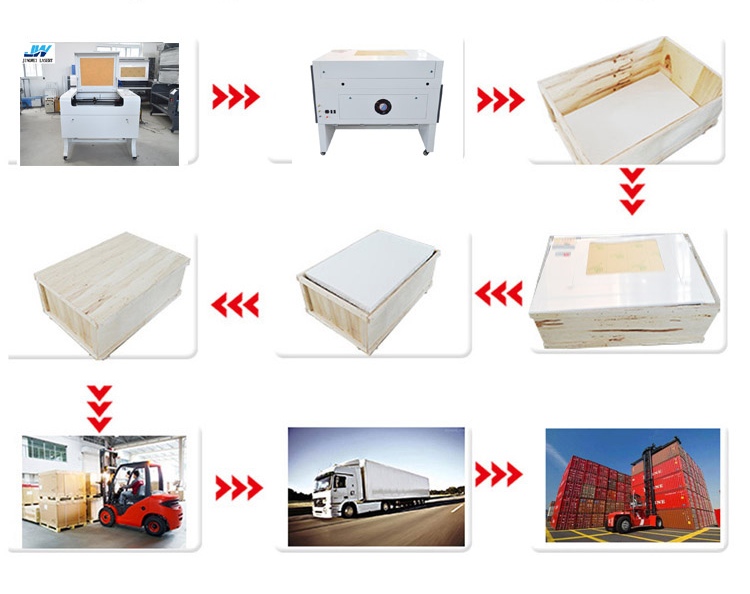

Packaging details	Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods	1.Shipping by sea(recommend big product or a lot of goods of the order)
	2.By air
	3.By express: EMS, DHL, Fedex, UPS etc
