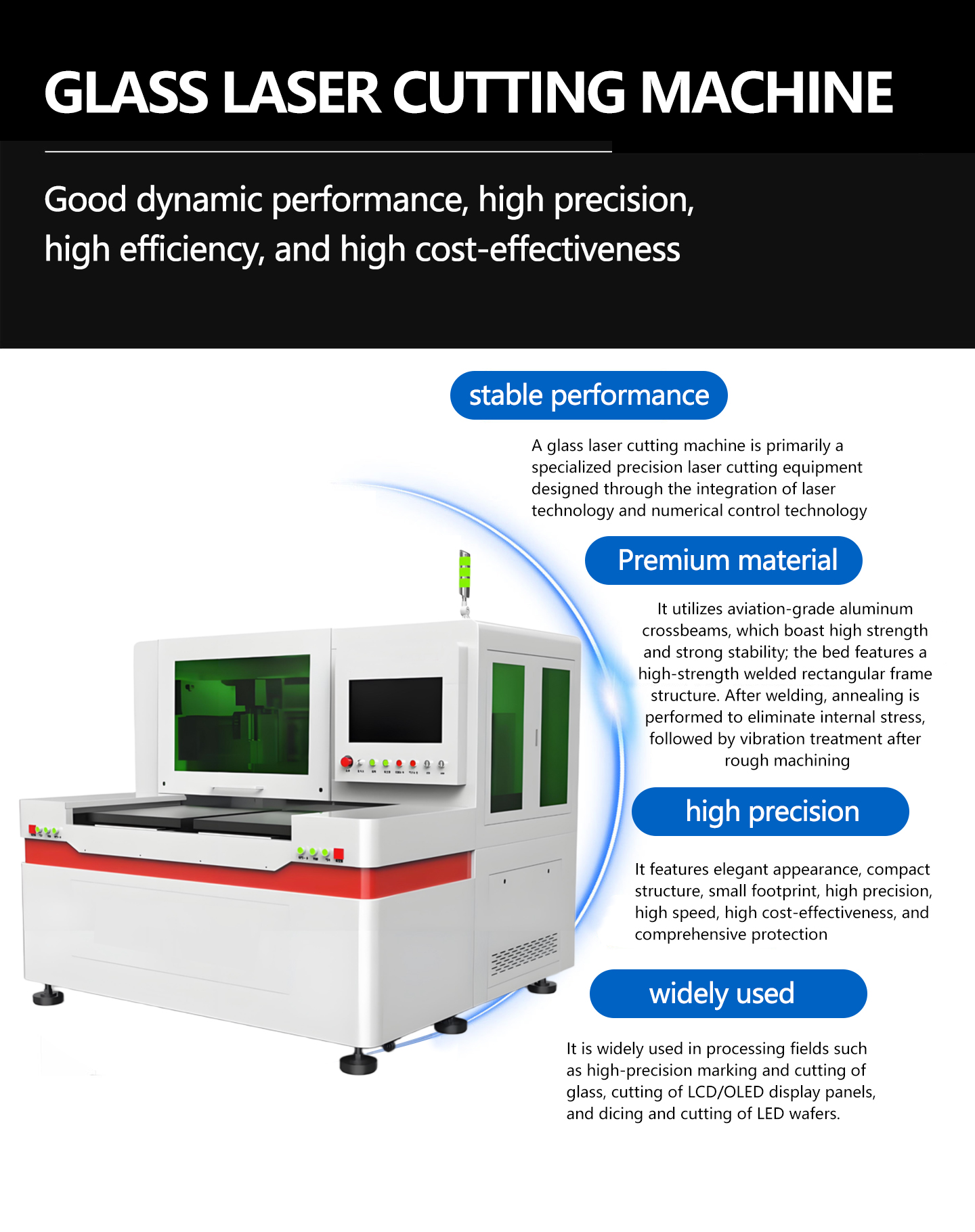

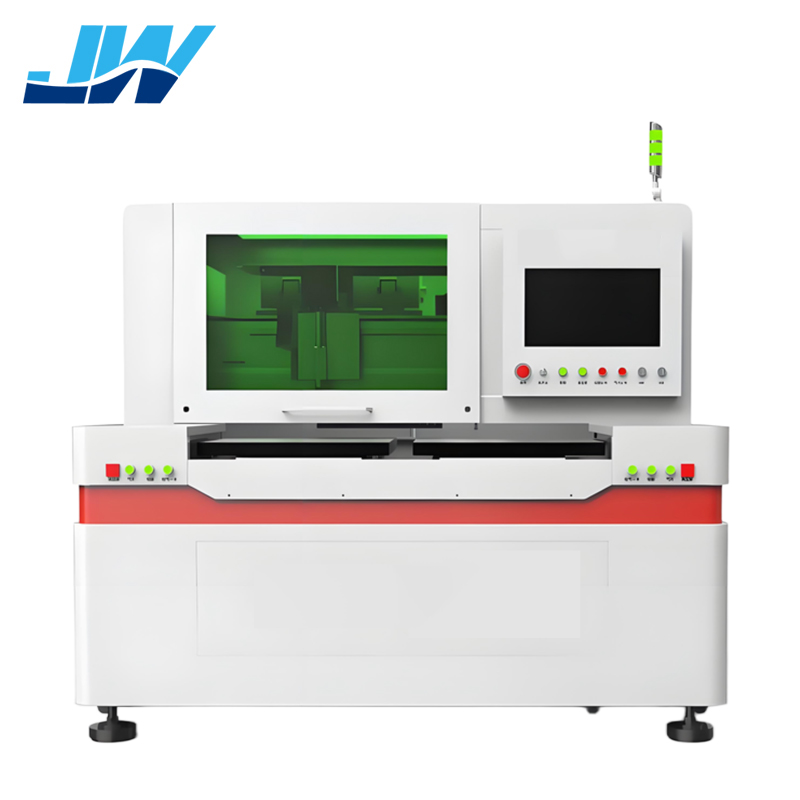

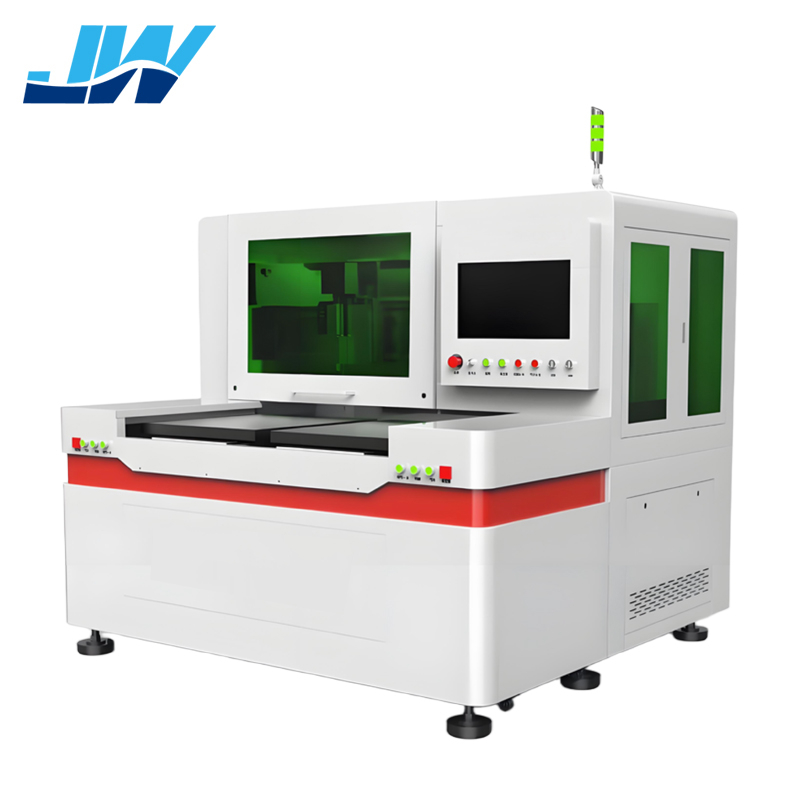

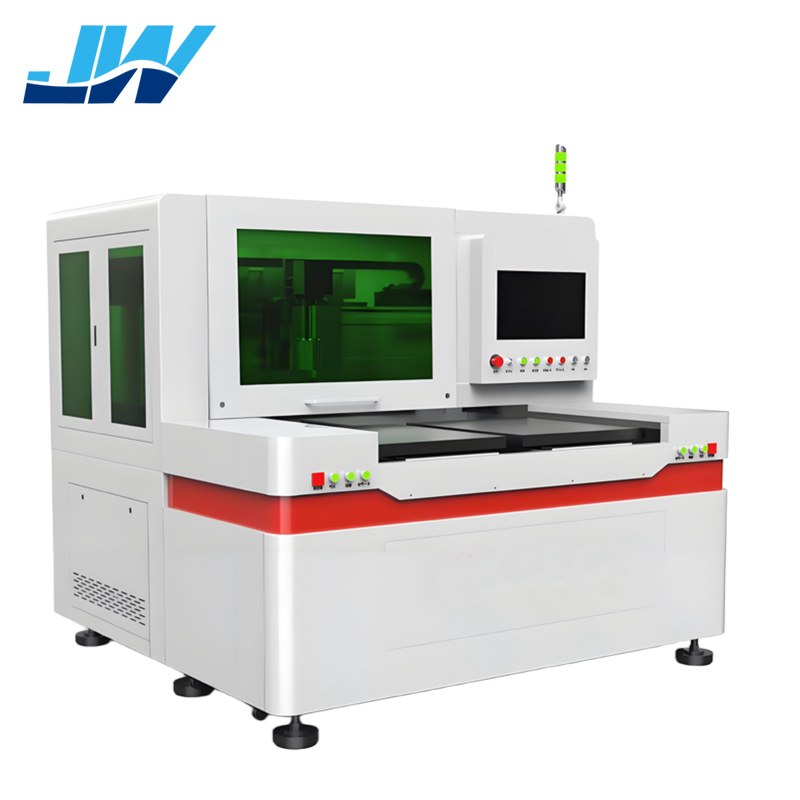

Product Description
Specification
| Cutting Power | 90W Picosecond Laser |
| Splitting Power | 300W |
| Equipment Weight | 4.5 tons |
| Floor Area | 9 m² |
| External Dimensions | 1980*1980*1800mm |
| Equipment Structure | Motion bed made of Grade 00 marble |
| Working Environment | Temperature: 23-26°C, Humidity: 45%-60% |
| Power Requirement | 380V/50Hz / 8000W/hour |
| Cutting Range | 1200*800mm or 800*600mm (dual workstations) |
| Cutting Accuracy | ±0.02mm |
| Cutting Speed | - For 8mm-thick glass: 260-350mm/s; ≥2000-3000 pcs/hour for φ70 circles- For 2mm-thick glass (φ32 circles): ≥3600 pcs/hour, 80000 pcs/day |
| Motion Structure | Grade 00 Marble, never deforms. |
| Motor | Linear Motor |
| XYZ Axis Linear Guide | THK (Japan) (Industry T Configuration) |
| XYZ Axis Linear Motor | Ironless Linear Motor; Z-axis 24-bit Precision Servo Motor |
| XYZ Axis Grating Ruler | Renishaw (UK Imported) with 0.1μm Resolution |
| Cooling method | water cooling |
| Camera | 5-Megapixel CCD |
Marking sample
Packing & Delivery
1. Clean the machine
2. Wrap the dust-proof film
3. Foam padding inside.
4. Load into standard export wooden box.
5. As the Customer request delivery machine by ship or air express
6.Post the shipping marks according to the customer's requirements
